Bridge and Gantry milling machines

We offer a selection of used bridge type and Gantry milling machines. Available at our used machine tools warehouse in Zaragoza (Spain).

JOBS LINX

Gantry milling machine with linear motors
Manufactured in 2017 with HEIDENHAIN iTNC-530 HSCI CNC
Travel (X/Y/Z Axis) :2,600/2,200/900 mm
Distance between columns: 3,140 mm
Head oscillation range – C axis: 400º (± 200º) – continuous
Head rotation – A axis: 220º (± 110º) – continuous
TWIST head 5 continuous axes

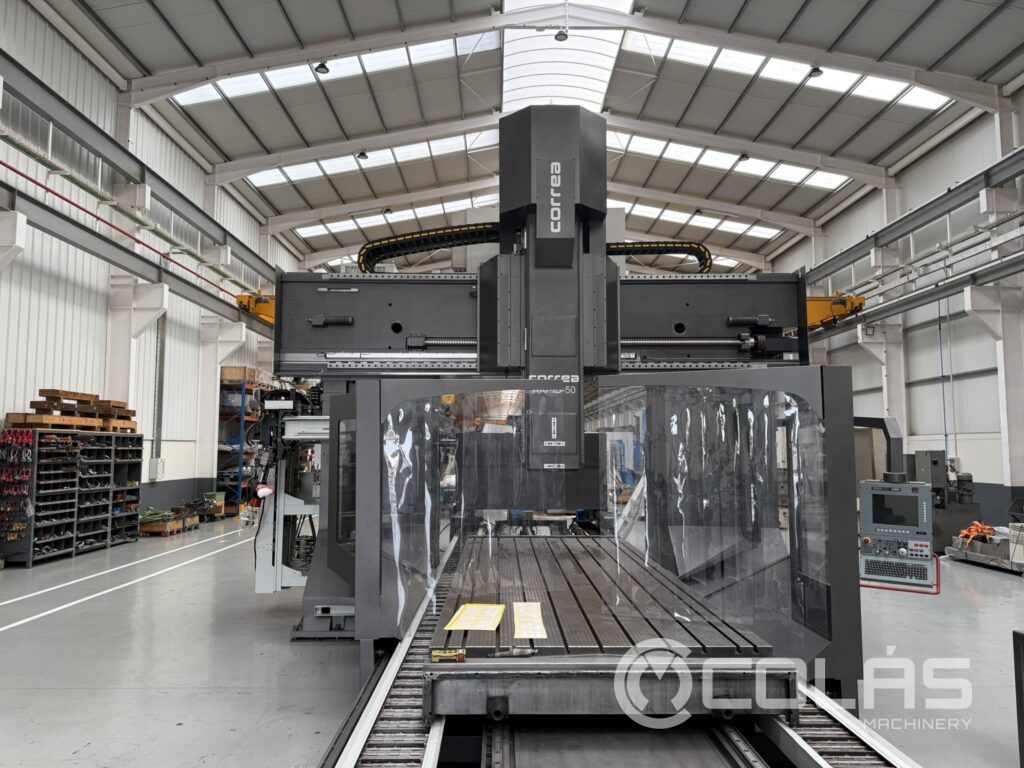

Correa RAPID-50

New in 2005 with CNC Heidenhain TNC 530
Table surface: 5,000 x 2,000 mm
Travels (X/Y/Z): 5,000/3,100/1,200 mm
Distance between columns: 2,800 mm.
Automatic head UAD II 0.1º / 0. 1º 6,000 rpm
Head 2 – vertical chuck
ATC 30 tools

Zayer TEBAS 5000

New in 2013 with HEIDENHAIN iTNC-530 HSCI CNC.
Automatic head 45º 0.001º/0.001º 6000 rpm 43 kW
Direct output head reduction 1:2.29
Automatic head changer
ATC 20 tools
Chip conveyor- Internal and external cooling.

Nicolás Correa FP 50/80 5 axis

New in 2010 with CNC iTNC-530 5 axis
Table: 8.500×2.500 mm.
Travels (X/Y/Z) :8.000/3.800/1.250 mm
Distance between columns: 3.100 mm
5-axis automatic head
B/C axis oscillation range: ± 190º/± 360º
30 positions ATC

Second Hand Correa FP40/30 Bridge Type Milling Machine

Used Correa FP40/30 Bridge Type Milling Machine

Used Correa FP40/30 ATC UDG Bridge Type milling machine. CNC Heidenhain TNC 426. Orthogonal Autoindex Head 2.5º/2.5º. Internal Coolant. ATC 10 Tools.

Nicolás Correa FP40-40

Manufactured in 1997 with HEIDENHAIN TNC 426M
Table: :4,000 x 1,250 mm
Travels (X/Y/Z) :3,500/2,500/1,000 mm
Distance between columns: 2,300 mm
Direct head and 45º head
Chip conveyor

CORREA FP40/40 UAGA

4 meter Correa double column milling machine
New in 2006. CNC HEIDENHAIN iTNC-530
Table Surface: 4.500×2.000 mm.
Travels (X/Y/Z): 4.000/3.000/1.000 mm.
Distance between columns: 2.550 mm.
Automatic Head Othogoal UAGA 2.5º/2.5º
Direct exit head

NICOLÁS CORREA FP40-80

8 meter bridge type milling machine
New in Year /Reconstruction year :1999 / 2020
CNC HEIDENHAIN TNC-530
Table Surface :8.000 X 2.000 mm
Travels (X/Y/Z): 8.000/3.250/1.000 mm
Distance between columns:2.730 mm.
Cabezal Giro Automático con 4º y 5º Eje

ZAYER KPCU6000 AR

High Performance Zayer Milling Machine
New in 2003. CNC HEIDENHAIN TNC-530
Travels (X/Y/Z): 6000/3.550 + 873/1100 mm.
Distance between columns: 2800 mm.
Autoindex Head 45º 0,001º/0,001º
Internal and external coolant
Chip Conveyor ( 2 Longitudinal y 1 cross)

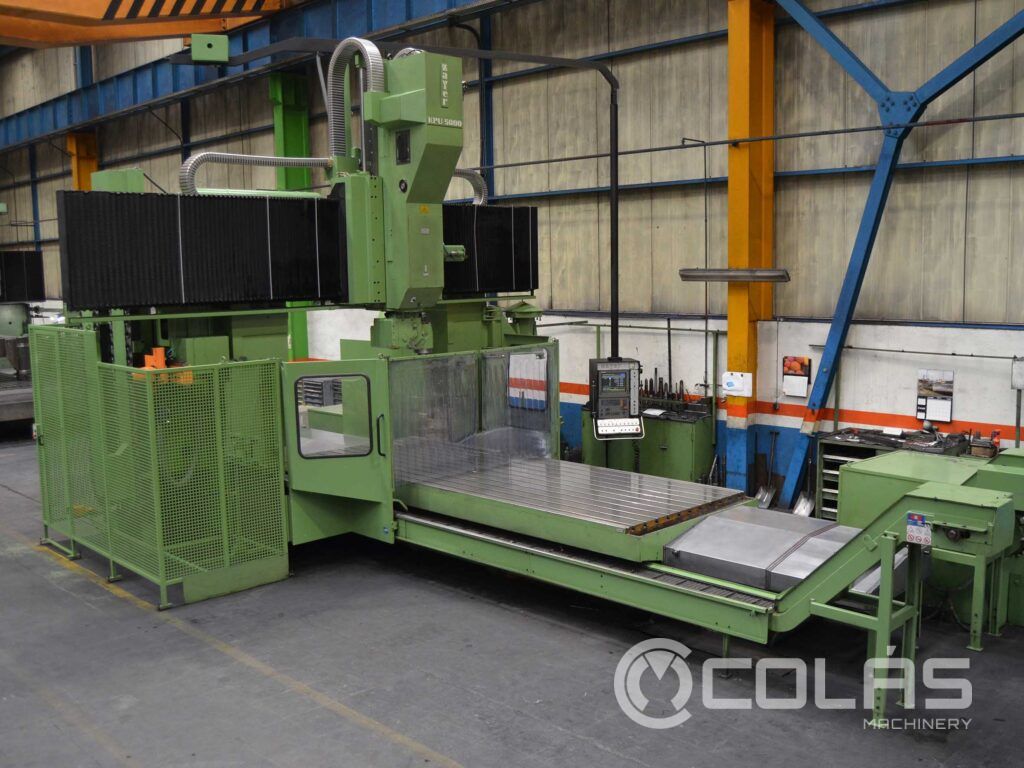

ZAYER KPU-5000 AR

Pre-owned Zayer milling machine with Heidenhain CNC
Travels (X/Y/Z) : 4,700/:3,050+873 /1,100 mm
Distance between columns : 2,300 mm
Automatic head 45º 0.001º/0.001º 60000 rpm
Spherical head 5 axis 0.001º/0.001º
Internal and external coolant
Double chip conveyor

ZAYER GPU-10000

New in 2003 with HEIDENHAIN TNC-430M CNC (9 axes)
Travel (X/Y/ Z): 10,000/5,880/1,100 mm.
Distance between columns: 4,100 mm.
Automatic head 0.001º/0.001º 6,000 rpm
60-positon ATC
2 longitudinal chip conveyor
1 cross chip conveyor

CORREA FP40/30 UAGA ATC

Bridge type Correa milling machine with autoindex head
New in 2004 with CNC Heidenhain iTNC 530
Travels (X/Y/Z): 2.500/1.000/2.350 mm.
Distance between columns: 2.350 mm.
Orthogonal 2.5º/2.5º and direct exit head
Internal cooolant
ATC 60 positions

Used Zayer FP-10000 double column milling machine

Bridge Type Milling Machine Zayer FP 10000

New in 2006. Reconstructed in 2015.
CNC Heidenhain TNC 530.
Table Surface: 10.000 X 3.000 mm.
Travels (X/Y/Z): 10.000/4.200/1.100 mm.
Distance Between Columns: 3.500 mm.
30 Tool ATC.
3 Heads: Universal 45º, Twist and Direct Output.

Bridge Type Milling Machine Correa FP 30/30 ATC

New in 2000. CNC HEIDENHAIN TNC-426.
Table Surface: 3.000 X 1.250 mm.
Distance between Columns:1.740 mm.
Internal Coolant
ATC 30 Tools.
External Electrospindle 18.000 rpm
90º angle head MIMATIC

CORREA FP 50/50 UAGA

Liquidation sale Bridge Type Milling Machine
New in 2001 HEIDENHAIN TNC-530 i
Table Surface :5.000 X 2.000 mm
Travels (X/Y/Z)) :5.000/3.250/1.000 mm
Distance Between Columns :2.700 mm
UAGA Automatic Head 2.5º/2.5 º
Extended head 600 mm and direct exit head

Used Zayer KP-5000 5 Axis Bridge Type Milling Machine

Used Zayer KP-5000 5 Axis Bridge Type Milling Machine. CNC Heidenhain TNC 530. Autoindex Head 360.000 positions. Reconstructed in 2017. Immediate Delivery. Can be Inspected under power.

Zayer ZP 3000

Fixed beam bridge type milling machine
New in 2005. CNC Heidenhain TNC 426D
Table surface: 3.000×1.000 mm.
Travels ( X/Y/Z): 2.700/2.400/1.000 mm.
Distance between columns: 1.600 mm.
90º Head.
Soporte escamoteable manual al lado izquierdo

ZAYER THERA 5000 Gantry Type Milling Machine

YOM 2012. CNC Heidenhain 530 HSCI. Table Surface : 5500 x 3000 x 350 mm. Travels (X/Y/Z): 5000/4750+1250/1250 mm. Distance Between Columns : 4.050 mm. Automatic Head 45º Continous. Direct Output Head. Automatic Head Change. ATC 30 Positions. Internal and External Coolant. Long and Cross Chip Conveyor.

Second hand Nicolás Correa 5 axis bridge type milling machine

CORREA FP40/50 5 Axis in Liquidation Sale

Used 5 Axis Correa milling machine
New in: 1997
CNC : SIEMENS 840D /HEIDENHAIN TNC 530
Table Surface :5.000 x 2.000 mm
Travels ( X/Y/Z): 5.000 / 3.250 / 1.050 mm.
Distance between columns :2.505 mm
Automatic Head 0,001º/0,001º (5 Axis Continuous)

Rebuilt Bridge Type Milling Machine Nicolas Correa FP 40/40

Bridge type milling machine with CNC HEIDENHAIN TNC-530
New in/reconstructed in :2003 /2021
Table surface :4.000 X 1500 mm
Travels (X/Y/Z) :4.000/2.500/800 mm
Distance between columns :2.050 mm
Automatic head 45º 2.5º and direct exit head

Second Hand Zayer KP-6500 AR Double Column Milling Machine

Used Zayer KP 6500-AR

High performance Zayer milling machine ( double column)
New in1999. CNC FIDIA M2/MQG-B
Direct output heard. Twist head 360.000 pos A and B bodies.
Travels ( X/Y/Z): 6.20073.050/1.100 mm.
Distance between columns: 2.300 mm.
Table Surface: 6.500×1.800 mm.

Nicolás Correa FP40 UAGA in liquidation sale

Correa FP40/40 UAGA in liquidation sale

Double column Correa milling machine
New in 2007. CNC HEIDENHAIN iTNC 530
Table Surface :4.000 X 1.500 mm
Travels (X/Y/Z) :4.000/3.000/1.000 mm
Distance between columns :2.550 mm
Automatic Head UAGA 2.5/2.5 and Direct Exit Head
Internal coolant

Used Zayer KP-5000 Bridge Type Milling Machine

Bridge Type Milling Machine Zayer KP 5000

Table Surface:5.000 X 1200 mm.
Travels: (X/Y/Z):4.710/2.560/1.100 mm.
Distance between shoulders:1.800 mm.
3 Heads (direct exit, automatic 4º and 5º axis, extended).
Automatic head change.
Cooling Head and Speed Box.
Soluble Oil Lubricant Tank With Filter Paper+ Magnetic Separator.

ANAYAK P 3200

Second Hand Anayak P-3000 for sale
New in 2004. CNC Heidenhain 530
Table Surface :3.000 x 1.700 mm
Travels (X /Y /Z ) :3.200/1.800/900 mm
Distance between columns :2.020 mm
ATC 20 Tools
Chip Conveyor

Double Column Milling Machine Correa FP3040

CORREA FP30-40 in liquidation sale

Bridge Type Milling Machine in Clearance Sale
New in 1998. CNC HEIDENHAIN TNC-426
Table Surface : 4.000 X 1250 mm
Travels (X/Y/Z): 3.500/2.000/800 mm
Distance between Columns : 2.300 mm
Universal Head 45º 3.000 rpm
Direct Exit Head 5.000 r.p.m.

Second Hand ZAYER KPCU-4000 AR

High Performance Zayer Milling Machine. CNC Heidenhain TNC 530. YOM 2004. Auto-index Head 45º and Twist Head both continuous ( both 360,000 positions) . ATC 60 Tols. Chip Conveyor. Internal and External Coolant. Automatic Head Change

Correa FP40/60 Bridge Type Milling Machine

Reconstructed Portal Type Milling Machine
CNC: Heidenhain TNC 530
Table Surface: 6.000 X 2.000 mm
Travels (X/Y/Z): 6.000 /3.000/ 1.000 mm
Distance between centers 2.520 mm
Direct Output Head and 45º Head
ATC 60 Tools.

Second Hand Doosan BM-2740 Machining Center

Used DOOSAN BM-2740

Multipurposed Bridge Type Machining Center
New in 2015. CNC Heidenhain TNC i530
Table Surface: 4.000 x 2.500 mm.
Travels ( X/Y/Z): 4.000/2.700/800 mm.
ATC 40 Tools
Internal Coolant 20 Bar
Chip conveyor

Used ZAYER FP-8000

New in :11/2000 CNC :FIDIA M2/MQG-B
Table Surface :8.000 X 3.000 mm
Travels (X/Y/Z) :8.000/4.300/1.100 mm
Distance Between Columns :3.600 mm
Direct output head. Twist Head 0.001º/0.001º

ZAYER KPCU8000 AR

Second Hand Bridge Type Milling Machine
New in 2006. CNC HEIDENHAIN TNC-530
Travels (X/Y/Z): 8000/3.550 + 873/1100 mm.
Distance between columns: 2800 mm.
Autoindex Head 45º 0,001º / 0,001º
External and Internal Coolant
Longitudinal Chip Conveyor

CORREA FP 30/40 ATC

Second Hand Correa FP40/30 with CNC Heidenhain TNC 426 PB
New in: 2000
Travels (X/Y/Z): 3.500/2.000/800 mm.
Distance between columns: 1.740 mm.
ATC 24 Tools
Internal Coolant
Chip Conveyor

Fresadora Puente Correa FP40/40 S ATC UDG

Used Correa FP40/40 S ATC UDG

Used Nicolás Correa Gantry FP40/40 with 4 Axis Nikken.
Year 1997. Heidenhain TNC 426PA.
X Axis: 4 metres.
Distance between columns: 2.300 mm.
ATC 60 TOOLS.
Portable Handwheel: Heidenhain HR410.
Tool Setting Probe

Correa FP40/40 S ATC milling machine

Second Hand Correa Milling Machine with CNC Siemens. New in 2001. Travels(X/Y/Z): 4000/2500/1000 mm. Distance between columns: 2000 mm. Double Chip Conveyor. Internal Coolant. ATC 30 Tools. Excellent Condition.

Planer-Type Milling M/C Double Column ZAYER FMU 14000

CNC HEIDENHAIN TNC-530 ( New).
2 Tables 7000*2.500.
4 Heads:
Direct Output
Ortogonal
Automátic 4 positions “L” shaped,
extended “L”.shaped

Fresadora Puente 5 Ejes Zayer KP 4000 usada

Planer-Type Milling M/C – Double Column Zayer KP 4000

Manufacturing Year 2000. CNC HEIDENHAIN TNC-430CA. Table Surface: 4.000 X 1500 mm. Travells (X/Y/Z): 3.700/3.050/1.100 mm. Distance between Shoulders: 2.300 mm. 2 Automatic Heads 360.000 positions elbow-head, Spherical and Twist. Spherical Head Taper : ISO-50. Twist Head Taper: ISO-40. Head Coolant and Gearbox: INCLUDED. Automatic Tool Charger of 10 Tools INCLUDED

Used CORREA FP30-30 Bridge Type Milling Machine

Bridge Type Milling Machine Nicolás Correa FP 30/30

CNC HEIDENHAIN TNC-530.
Table Surface: 3.000 X 1.250 mm.
Distance between Columns:1.740 mm.
Travels (X/Y/Z):2.500/2.000/1.000 mm.
Distance between Shoulders:800 mm.

CNC HEIDENHAIN TNC-426. Year:1998

Used Zayer FPU-11000

Used bridge type milling machine Zayer FPU-11000 with Heidenhain TNC-430PA. New in 2000. Distance between columns: 3100 mm. Chip Conveyor. Automatic Head 45º and 360.000 positions. ATC 80 Tools. Internal and external coolant. Excellent condition. Can be inspected up and running. Inmediate delivery.

ZAYER FP 4500 Planer-Type Milling M/C – Double Column

Bridge Type Milling Machine Zayer FP-4500. Direct Output Head and 45º Head. Table Surface: 4500×2000 mm. Travels ( X/Y/Z): 4500/3200/1000 mm. Distance Between Columns: 3200 mm. Hydraulic Tool Clamper. Portable Handwheel.
