Zayer.

Zayer Bedtype milling machine
New in  :2000
CNC :  HEIDENHAIN TNC 426
Table Surface :4.000 X 1000 mm.
Travels (X/Y/Z): 3.708 / 1.259/ 1.516 mm.

New 2013 with CNC HEIDENHAIN iTNC-530 HSCI
Travels (X/Y/Z): 3,003/1,505/1,600 mm.
Automatic head 45º 0.001º 0.001º 40kW
ATC 40 tools
Internal and external cooling
Chip conveyor
Part touch probe

New in 2003/ Reconstructed 2019
CNC HEIDENHAIN TNC 530
Travels (X/Y/Z):2.700/1.250/1.500 mm.
Auto Index Head 45º 0.001º/0.001º
Internal Coolant 20 BAR
ATC 30 Tools
Double Chip Conveyor

High Performance Zayer Milling Machine
New in 2003. CNC HEIDENHAIN TNC-530
Travels (X/Y/Z): 6000/3.550 + 873/1100 mm.
Distance between columns: 2800 mm.
Autoindex Head 45º 0,001º/0,001º
Internal and external coolant
Chip Conveyor ( 2 Longitudinal y 1 cross)

Fully reconditioned bed type milling machine
Auto Indexing Head 45º 0.001º/0.001º
Internal Coolant
ATC 40 Tools
Double Chip Conveyor
Full protecting guards
Rotary Table

New in 2013. CNC HEIDENHAIN TNC 530 HSCI
Table Surface:4.000 X 1.000 mm.
Travel (X/Y/Z): 3.700/1.250/1.500 mm.
Autoindex head 45º 0.001º/0.001º
Internal Coolant
ATC 30 Tools
Chip Conveyor

New in 2003 with  HEIDENHAIN TNC-430M CNC (9 axes)
Travel (X/Y/ Z): 10,000/5,880/1,100 mm.
Distance between columns: 4,100 mm.
Automatic head 0.001º/0.001º 6,000 rpm
60-positon ATC
2 longitudinal chip conveyor
1 cross chip conveyor

High Performance Zayer Milling Machine. CNC Heidenhain TNC 530. YOM 2004. Auto-index Head 45º and Twist Head both continuous ( both 360,000 positions) . ATC 60 Tols. Chip Conveyor. Internal and External Coolant. Automatic Head Change

YOM 2012. CNC Heidenhain 530 HSCI. Table Surface : 5500 x 3000 x 350 mm. Travels (X/Y/Z): 5000/4750+1250/1250 mm. Distance Between Columns : 4.050 mm. Automatic Head 45º Continous. Direct Output Head. Automatic Head Change. ATC 30 Positions. Internal and External Coolant. Long and Cross Chip Conveyor.

Used Zayer Milling Machine reconstructed
CNC HEIDENHAIN TNC 530i
Table Surface :3.000 x 1.000 mm
Travels (X/Y/Z) :2.700 / 1.200 / 1.000 mm
Automatic 45º Head 1º /2.5º
ATC 30 tools
Chip coveyor

Used Zayer KP-5000 5 Axis Bridge Type Milling Machine. CNC Heidenhain TNC 530. Autoindex Head 360.000 positions. Reconstructed in 2017. Immediate Delivery. Can be Inspected under power.

New in 2006. Reconstructed in 2015.
CNC Heidenhain TNC 530.
Table Surface: 10.000 X 3.000 mm.
Travels (X/Y/Z): 10.000/4.200/1.100 mm.
Distance Between Columns: 3.500 mm.
30 Tool ATC.
3 Heads: Universal 45º, Twist and Direct Output.

5 meter bed type milling machine
New in 1995. CNC HEIDENHAIN TNC-360
Table surface : 5.000 x 1000 mm.
Travels ( X/Y/Z) : 4.71271.202/1.035 mm.
Taper:ISO 50 / DIN 2080
Main Spindle Power:22 kW
Max Allowed weight on table :10.000 kg

Fixed beam bridge type milling machine
New in 2005. CNC Heidenhain TNC 426D
Table surface: 3.000×1.000 mm.
Travels ( X/Y/Z): 2.700/2.400/1.000 mm.
Distance between columns: 1.600 mm.
90º Head.
Soporte escamoteable manual al lado izquierdo

Pre-owned Zayer milling machine with Heidenhain CNC
Travels (X/Y/Z) : 4,700/:3,050+873 /1,100 mm
Distance between columns : 2,300 mm
Automatic head 45º 0.001º/0.001º 60000 rpm
Spherical head 5 axis 0.001º/0.001º
Internal and external coolant
Double chip conveyor

Second Hand Zayer Travelling Column Milling Machine. Model 30 KCU 5000. Heidenhain TNC 430. Year 2003. Table: 5.000 X 2.000 mm. Travels ( X/Y/Z): 5.000 /1.250/ 2.000 mm. AutoIndex Head 45º 0.001º both in head and elbow. Direct Output Head, Automatic Head Changer. Internal Coolant 20 Bar. Chip Conveyor

New in :11/2000 CNC :FIDIA M2/MQG-B
Table Surface :8.000 X 3.000 mm
Travels (X/Y/Z) :8.000/4.300/1.100 mm
Distance Between Columns :3.600 mm
Direct output head. Twist Head 0.001º/0.001º

High performance Zayer milling machine ( double column)
New in1999. CNC FIDIA M2/MQG-B
Direct output heard. Twist head 360.000 pos A and B bodies.
Travels ( X/Y/Z): 6.20073.050/1.100 mm.
Distance between columns: 2.300 mm.
Table Surface: 6.500×1.800 mm.

Second Hand Bridge Type Milling Machine
New in 2006. CNC HEIDENHAIN TNC-530
Travels (X/Y/Z): 8000/3.550 + 873/1100 mm.
Distance between columns: 2800 mm.
Autoindex Head 45º 0,001º / 0,001º
External and Internal Coolant
Longitudinal Chip Conveyor

Second Hand Zayer 30 KCU 12000 with CNC Siemens 840. YOM 2008. Includes 5 heads, automatic head change, ATC 80 Tools, rotary table Bost, turning and milling tables Bost with Ø 2500 mm..Excellent Status. Can be inspected under power.

Second Hand Zayer milling machine with CNC Heidenhain TNC-426. New in 1998. Autoindex Head with 2 Positions180º in Head and continuous (0.0001º) in elbow. Chip Conveyor. ATC 40 Tools

Used bridge type milling machine Zayer FPU-11000 with Heidenhain TNC-430PA. New in 2000. Distance between columns: 3100 mm. Chip Conveyor. Automatic Head 45º and 360.000 positions. ATC 80 Tools. Internal and external coolant. Excellent condition. Can be inspected up and running. Inmediate delivery.

CNC HEIDENHAIN TNC-426.
Table Surface:2.000 X 1.000 mm.
Travels (X/Y/Z): 1.725 /1.200/1.000 mm.
Automatic Head:2×180º / Manual Head
Hydraulic Tool Clamper
Portable Handwheel

Bridge Type Milling Machine Zayer FP-4500. Direct Output Head and 45º Head. Table Surface: 4500×2000 mm. Travels ( X/Y/Z): 4500/3200/1000 mm. Distance Between Columns: 3200 mm. Hydraulic Tool Clamper. Portable Handwheel.

Used ZAYER 30 KM 9000 Travelling Column Milling Machine. Year 2000. CNC Heidenhain TNC 430. Continuous Auto Indexing Head 0.001º/0.001º. Portable Handwheel Heidenhain HR 410.

Manufacturing Year 2000. CNC HEIDENHAIN TNC-430CA. Table Surface: 4.000 X 1500 mm. Travells (X/Y/Z): 3.700/3.050/1.100 mm. Distance between Shoulders: 2.300 mm. 2 Automatic Heads 360.000 positions elbow-head, Spherical and Twist. Spherical Head Taper : ISO-50. Twist Head Taper: ISO-40. Head Coolant and Gearbox: INCLUDED. Automatic Tool Charger of 10 Tools INCLUDED

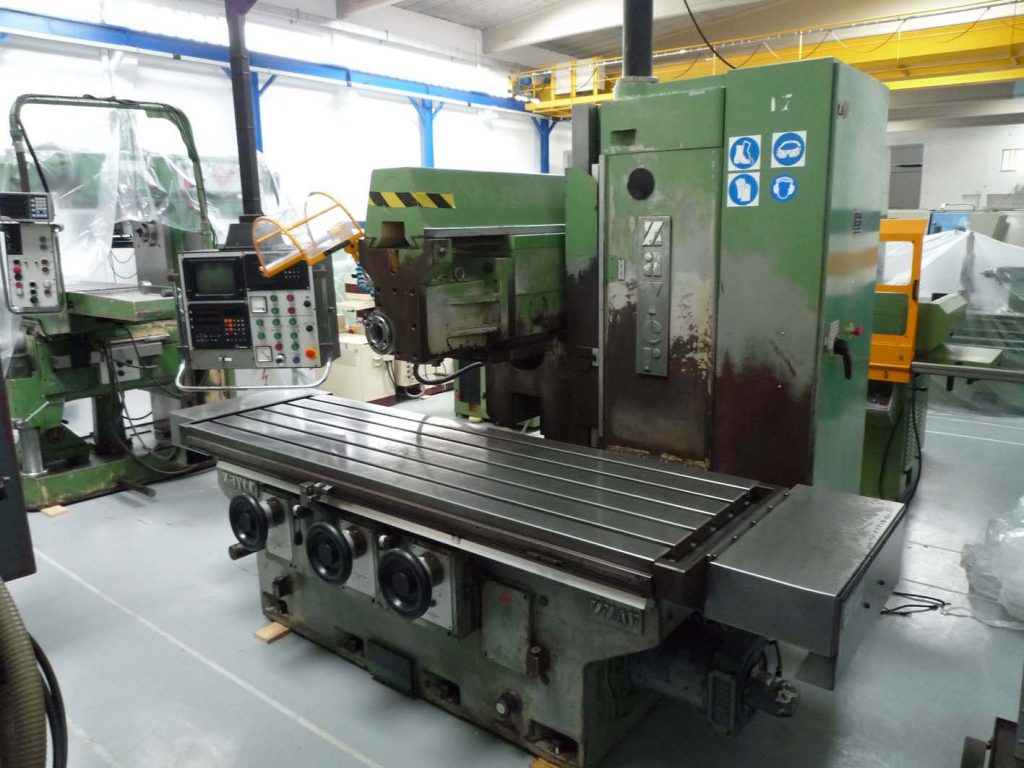

Second-hand Zayer bedtype milling machine
Table surface: 2160 X 700 mm.
Travels (X/Y/Z): 1,830/1,016/760 mm.
Fagor 3-axis DRO
Number of feeds: Infinite/Continuous

CNC HEIDENHAIN TNC-530 ( New).
2 Tables 7000*2.500.
4 Heads:
Direct Output
Ortogonal
Automátic 4 positions “L” shaped,
extended “L”.shaped

Table Surface:5.000 X 1200 mm.
Travels: (X/Y/Z):4.710/2.560/1.100 mm.
Distance between shoulders:1.800 mm.
3 Heads (direct exit, automatic 4º and 5º axis, extended).
Automatic head change.
Cooling Head and Speed Box.
Soluble Oil Lubricant Tank With Filter Paper+ Magnetic Separator.

Table Surface: 5.000 X 1.100 mm.
Travels (X/Y/Z):5.000/ 1.200/1.500 mm.
Automatic Head:2,5 º / 2,5º.
Hydraulic Tool Clamping system.
CNC HEIDENHAIN TNC-426 D. Year:1998

Table Surface: 2000 X 630 mm. Travels (X/Y/Z):1800/800/800 mm. CNC FAGOR 8050 M. ATC 30 Positions. Chip Conveyor. Automatic Head. Year 1992.

Table Surface:3.000 X 1000 mm.
Travels (X/Y/Z): 2.700/ 1.250/ 1.000 mm.
CNC HEIDENHAIN TNC 355. Year:1.991

CNC HEIDENHAIN TNC-530. Table Surface:9.700 X 1.200 mm. Travels (X/Y/Z): 8.408/1258/2005 mm. Automatic Head. 4 support cubes 1200 x1000 mm. Portable Wheel HEIDENHAIN HR-410. Main Engine Power:37 Kw.
