ZAYER KPU-5000 AR
Other available Bridge and Gantry milling machines
Nicolás Correa FP 50/80 5 axis
New in 2010 with CNC iTNC-530 5 axis Table: 8.500×2.500 mm. Travels (X/Y/Z) :8.000/3.800/1.250 mm Distance between columns: 3.100 mm 5-axis automatic head B/C axis oscillation range: ±
Used Correa FP40/30 Bridge Type Milling Machine
Used Correa FP40/30 ATC UDG Bridge Type milling machine. CNC Heidenhain TNC 426. Orthogonal Autoindex Head 2.5º/2.5º. Internal Coolant. ATC 10 Tools.
Zayer TEBAS 5000
New in 2013 with HEIDENHAIN iTNC-530 HSCI CNC. Automatic head 45º 0.001º/0.001º 6000 rpm 43 kW Direct output head reduction 1:2.29 Automatic head changer ATC 20 tools Chip conveyor-
Correa RAPID-50
New in 2005 with CNC FIDIA C20 (Heidenhain TNC 530 optional) Table surface: 5,000 x 2,000 mm Travels (X/Y/Z): 5,000/3,100/1,200 mm Distance between columns: 2,800 mm. Automatic head UAD II
Technical Features of this Brige Type Milling Machine
| Manufacturer | ZAYER | |
| Model | KPU-5000 AR | |
| Year | 11/2000 | |
| CNC | HEIDENHAIN TNC-430 | |
| Table surface | 5.000 x 1.800 mm | |
| Longitudinal travel (X Axis) | 4.700 mm | |
| Cross travel (Y Axis) | 3.050+873 mm | |
| Vertical travel (Z Axis) | 1.100 mm | |
| Distance between columns | 2.300 mm | |
| Maximum height between spindle nose and table with spherical head | 1.565 mm. | |
| Maximum height between spindle nose and table with 45º head in vertical position | 1.574 mm. | |
| Rapid feed (X, Y, Z) | 25.000 mm/min | |
| Max. working feed | 15.000 mm/min | |
| Heads | ||
| 45º Automatic head | INCLUDED | |
| 45º Head (A Axis / B Axis) | 360.000 posiciones | |
| Automatic Head 45º Taper | ISO-50 – DIN 69871 | |
| Automatic Head 45º Speed | 6.000 r.p.m. | |
| Spherical Rotation Head | INCLUDED | |
| Direct Output Head Taper | ISO-40 – DIN 69871 | |
| Direct Output Head Speed | 18.000 r.p.m. | |
| Main Motor Power | 37 kW. | |
| Speed Ranges | 2 | |
| Equipment | ||
| Manual Head Change | INCLUDED | |
| Retractable Automatic Support in the Right Side For 45º Head | INCLUDED | |
| Retractable Automatic Support in the Right Side For Direct Output Head | INCLUDED | |
| Ethernet Connection | INCLUDED | |
| Double Chip Conveyor | One at each side of the machine | INCLUDED |
| 1000 l Oil Tank with Filter Paper + Magnetic Separator | INCLUDED | |
| Internal coolant 20 Bar | INCLUDED | |
| External coolant10 bar | INCLUDED | |
| Automatic tool changer | INCLUDED | |
| ATC positions | 30 | |
| CNC 3D ROT Function | INCLUDED | |
| Others | ||
| Positioning Accuracy | 0.010 mm. | |
| Repetitive Accuracy | 0.005 mm. | |
| Machine Colour | RAL 7038 / RAL 5012 | |
| Portable Handwheel | HEIDENHAIN HR-410 | |
| Carrying Load Table | 20.000 Kg. | |
| Machine Weight | 42.000 Kg. | |
| Axis and Head Engines Brand | SIEMENS DIGITALES |
Detailed information of this Brige Type Milling Machine

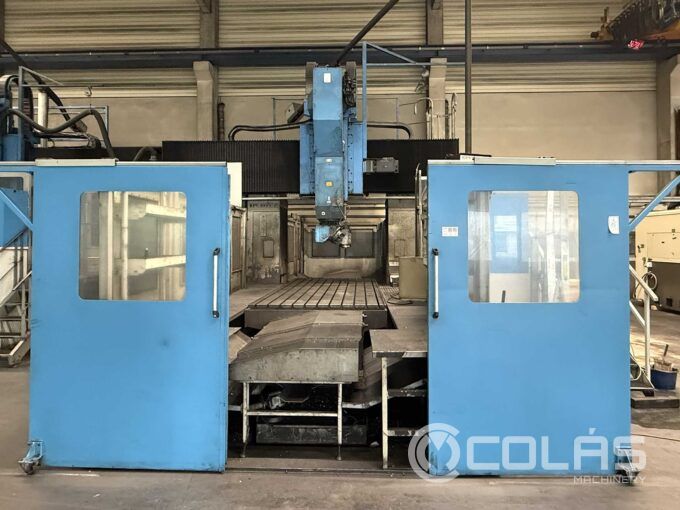

High performance ZAYER KPU-5000 AR milling machine for sale. Available at our Zaragoza warehouse for immediate delivery. It can be seen in operation.
It is a high-performance bridge type milling machine from Zayer, a world-leading milling machine manufacturer based in Spain. New in 2000 with CNC Heidenhain, it has been completely rebuilt by our team of experts in second-hand Zayer milling machines. It has two heads – automatic 45º and spherical 5-axis, both with 360,000 positions – and is highly equipped with, among others, automatic tool changer, head changer, internal and external coolant, chip conveyour and perimetral fairing specially adapted by Maquinaria Colás to be addapted to available space.
Do you want to know more about this ZAYER KPU 5000 AR bridge type milling machine?
So don’t think about it and contact us. You can do it calling to +34976500624, write to sales@maquinariacolas.com or fill out the form. We will be happy to assist you. Whether you just want to learn more about this high-performance gantry milling machine or would rather come see it in action, we’re happy to help.
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
