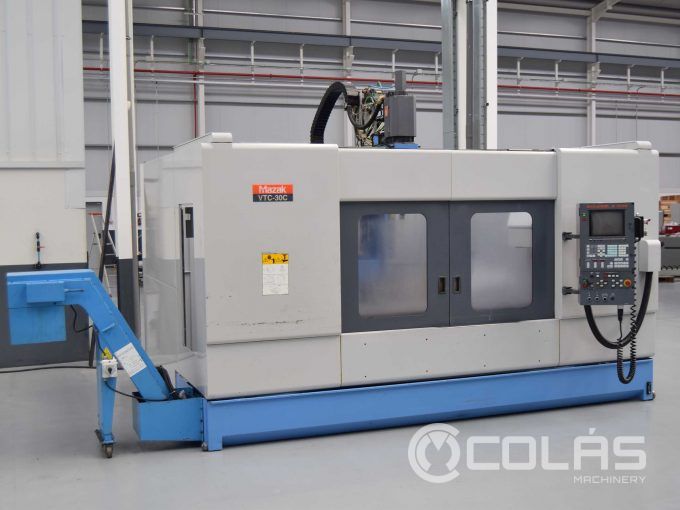

Used MAZAK VTC 820/30 ( 2014 )
Other available Vertical Machining Centers
Johnford SV41 with pallet changer
Johnford VMC with pallet changer New in 2007 with FANUC 18i MC.2 Table: 1,200 x 600 mm Travel (X / Y / Z) :1,050 / 610 / 610 mm 20-tool ATC Internal coolant 20 Bar 2 longitudinal and 1
MAZAK FJV 35 60
Mazak double column high precision center New in 2003. CNC Mazatrol Fusion 640M Table: 2,240 x 750 mm. Travels (X/Y/Z): 2.000/800/585 mm. 3D mold machining package Internal coolant Chip

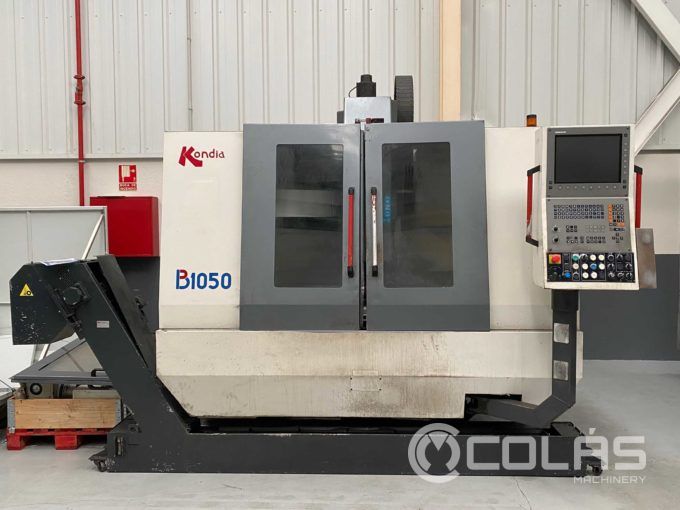

Used Kondia B-1050 VMC
Second Hand Kondia VMC with Heindenhain TNC530 Table Surface: 1.200 x 500 mm. Travels (X/Y/Z): 1.000/500/610 mm. Chip conveyor ATC 22 Tools Internal
GORATU G INNOVA 15
New in 2004 with FAGOR 8055 MC Table surface: 1,725×650 mm. Travels (X/Y/Z): 1,5007700/700 mm. Spindle speed 10,000 rpm 24-tool
Johnford SV41
Johnford 3+2 axis machining center New in 2007 with HEIDENHAIN iTNC 530 Table: 1,200 x 600 mm Travels (X / Y / Z) :1,050 / 610 / 610 mm 20-tool ATC Golden Sun CNCT 321 rotary table
Used KONDIA A-10 VMC
Second Hand Kondia VMC New in 2006 CNC HEIDENHAIN 530 Table Surface :1.200 x 500 mm. Travels ( X/Y/Z) :1.000/500/610 mm. ATC 40 Tools Internal Coolant Chip
NEWAY VM 1160-H 2 units new machine
2 new machining centers for sale CNC FANUC 0i MF Plus 15″ touch screen Travels (X/Y/Z): 1000/600/560 mm. Spindel BT40 12,000 rpm 24-tool automatic tool changer Internal coolant 20
Technical Features of this Second Hand VMC
| Year | 12/2014 |
| CNC | MAZATROL MATRIX NEXUS 2 |
| Table Surface | 3.500 x 820 mm |
| Max Weight Allowed on Table | 2.500 kg. |
| Min-Max distance from the spindle nose to the top of the table | 140-860 mm. |
| Longitudinal Travel (X- Axis) | 3.000 mm. |
| Transversal Travel (Y-Axis) | 820 mm |
| Vertical Travel (Z- Axis) | 720 mm. |
| Rapid Traverse (X, Y, Z Axis) | 50.000 mm/min |
| Max. Working Feed | |
| Includes high speed software package | |
| (Standard speed 8.000 mm/min) | 50.000 mm/min |
| Taper | CAT-40 DIN 69872 |
| Spindle Speeds | 35 to 18.000 rpm. |
| Engine Power | 35 kW |
| Tool Charger | 48 Herr / Tools |
| Synchronised Tapping | INCLUDED |
| Chip conveyor | INCLUDED |
| High pressure coolant through spindle 15 Bar | INCLUDED |
| Mazacc 3D high speed software package | INCLUDED |
| High Smoothing Control | INCLUDED |
| 3d coordinate conversion | INCLUDED |
| Maximum program size | 8 MB |
| Portable handwheel | INCLUDED |
| Machine Weight | 16.100 kg. |
Detailed information of this Second Hand VMC
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
