Used Juaristi TX1-S Boring Machine
Other available Boring machines

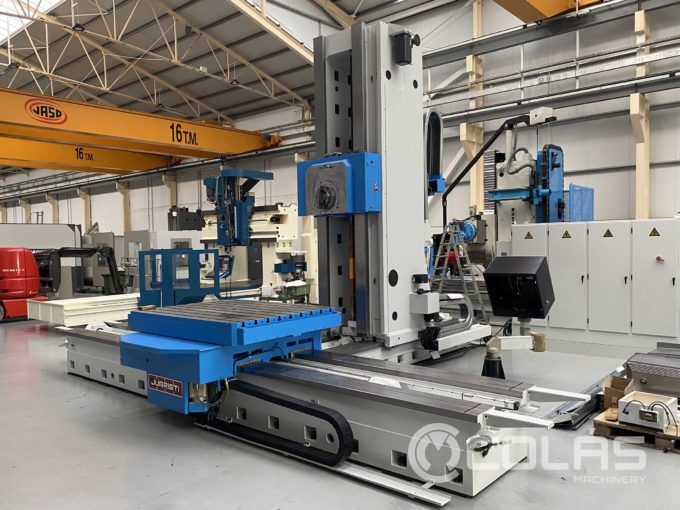

Juaristi TS 3-MG 12
Juaristi TS3 milling and boring center Manufactured in 2009 with CNC Heidenhain TNC 530 Juaristi MG-12 rotary table 2,000 x 2,500 mm. Automatic bi-rotative milling head 2.5º / 2.5º Boring
Johnford BMC 110
New in 2012 with CNC FAGOR 8055-MC Table: 1,400 x 1,600 mm continuous (0.001º) Travel (X/Y/Z axis): 2,000/1,800/1,600 mm. Quil diameter: 110 mm. 60-tool ATC Internal coolant 20
Technical Features of this Boring Machine
| Table Surface Ø | 1.300 mm. |
| Quill Diameter | 125 mm. |
| Table Longitudinal Traverse (X Axis) | 2.000 mm. |
| Column Cross Traverse (W Axis) | 1.500 mm. |
| Vertical Traverse (Y Axis) | 2.000 mm. |
| Quill Exit Traverse (Z Axis) | 600 mm. |
| Table Rotation (B Axis) | Continuo/ Continuos (0.001º) |
| Controlled Axis | X,Y,Z,W,B |
| Automatic Tool Charger 30 tools | INCLUDED |
| Chip Conveyor | INCLUDED |
| Measure Piece Probe | INCLUDED |
| Tool External Coolant | INCLUDED |
| Tool Internal Coolant 20 BAR | INCLUDED |
| Guarding Doors | INCLUDED |
| Main Axis Orientation | INCLUDED |
| Direct Output Support 350 mm | INCLUDED |
| Prepared for Automatic Head 2,5º-2.5º | INCLUDED |
| Rapid Traverse | 25.000 mm/min |
| Taper | ISO 50 DIN 69871/1-AD |
| Turning Speeds | 2 Ranges |
| Range Speeds | 0-3.000 rpm |
| Head Power | 30 Kw. |
| Table Carrying load MG X6 | 6.000 kg. |
| Machine Weight | 35.000 kg. |
| Portable Handwheel | HEIDENHAIN HR-410 |
| Extensible Head | INCLUDED |
| Machine Colour | RAL 7035 / RAL 5015 |
| New in | 2007 |
| CNC | HEIDENHAIN TNC 530 |
Detailed information of this Boring Machine
Used Juaristi TX1-S Boring Machine. Year 2007. Excellent conditions.
Do you want to get further details?
Contact us for more information and prices of this used Juaristi boring Machine.
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
