Soraluce TA35 Automatic
Other available Bed Type Milling Machines
Zayer 20 KF-2000
CNC Heidenhain TNC 426 Table dimension :2.000 x 1.000 mm. Longitudinal travel (X Axis) :1.725 mm. Cross travel (Y Axis) :1.250 mm. Vertical travel (Z Axis) :1.000 mm. Hydraulic Tool
Soraluce TA-D 35A
Bed type milling machine with rotating table. New in 2009 with HEIDENHAIN TNC-530 Rotary table 1250 x 1,250 mm. Travels (X/Y/Z): 3,500/1,200/1,250 mm. Automatic Head 2.5º/2.5º 4,000
CME FS 5
New in 2002 . CNC Heidenhain Table surface:3.600 x 800 mm. Travels (X/Y/Z): 3.000/1.000/1.000 mm. Rotary table SPIRSIN M 81310 F/500 Ø500 mm Internal coolant 15 bar Chuck
Technical Features of this Bed Type Milling Machine
| Manufacturer | SORALUCE |
| Model | TA-35 AUTOMATIC |
| Year | 2009 |
| CNC | HEIDENHAIN TNC-530 |
| Table | |
| Table Surface | 3.700 x 1.000 mm. |
| Travels and feeds | |
| Travels ( X/Y/Z) | 3.500/1.000/1.250 mm. |
| Working Feed (X/Y/Z) | 10.000 mm/min |
| Rapid Feed (X/Y/Z) | 25.000 mm/min |
| Main Spindle | |
| Head Type Automático | 2. 5º/2. 5º |
| Taper | ISO 50 DIN |
| Turning Speeds | 3.000 rpm |
| Head Power | 24 kW |
| Automatic Tool Charger | |
| Magazine type | Frontal |
| ATC Positions | 20 |
| Tool selection | Random |
| Equipment | |
| Integral protecting guards | INCLUDED |
| Chip conveyor | INCLUDED |
| Internal Coolant | INCLUDED |
| Coolant deposit with magnetic and paper filter | INCLUDED |
| Portable Handwheel | Heidenhain HR-410 |
| Others | |
| Total Power | 46 kVA |
| Machine Weight | 18.000 kg |
| Machine Dimension | 8760 x 4570 x 3530 mm. |
Detailed information of this Bed Type Milling Machine

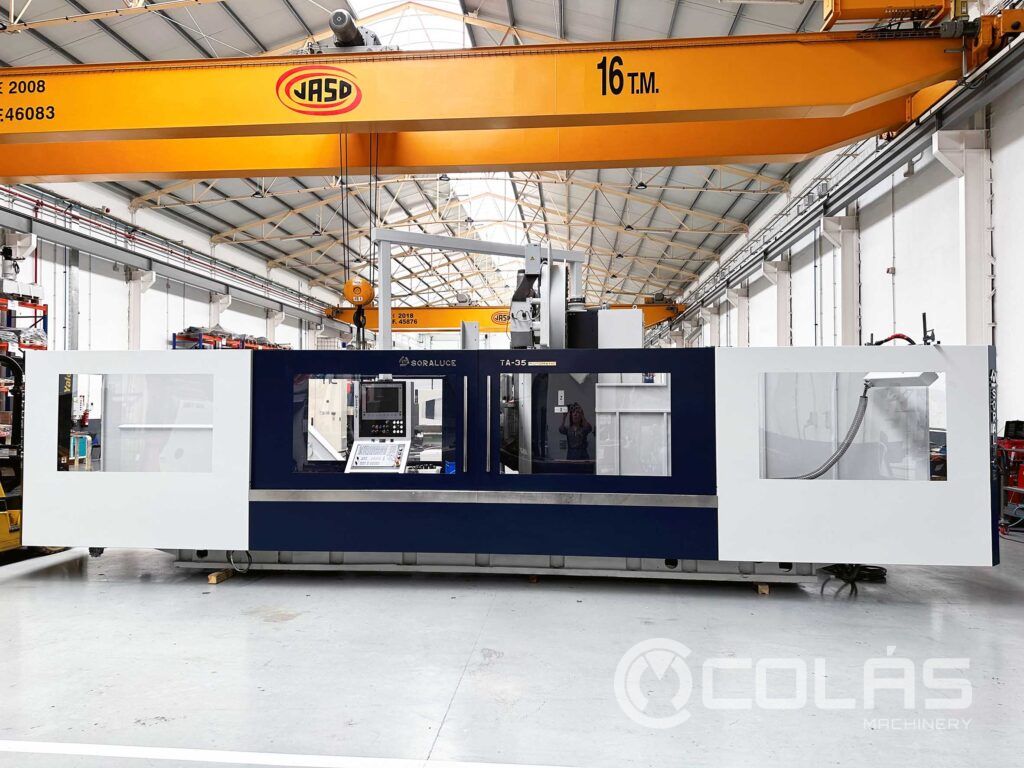

Used Soraluce TA35 Automatic milling machine for sale at Maquinaria Colás, 50720 Zaragoza, Spain. After being completely inspected by our team of experts in used milling machines, it is ready for inspection and immediate delivery. Can be inspected under power at your convenience.
New in 2009 with Heidenhain TNC 530 numerical control, this bed type milling machine is equipped with a 2.5º automatic spindle in both head and elbow. It also includes, among others, internal coolant, chip conveyor, ACT with 20 positions and a coolant tank with a paper filter.
Are you interested in this used Soraluce TA35 Automatic milling machine?
Then contact us. Call +34 976500624, write to sales@maquinariacolas.com or fill out the contact form. We will be happy to send you all the information you need as well as a budget without commitment.
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
