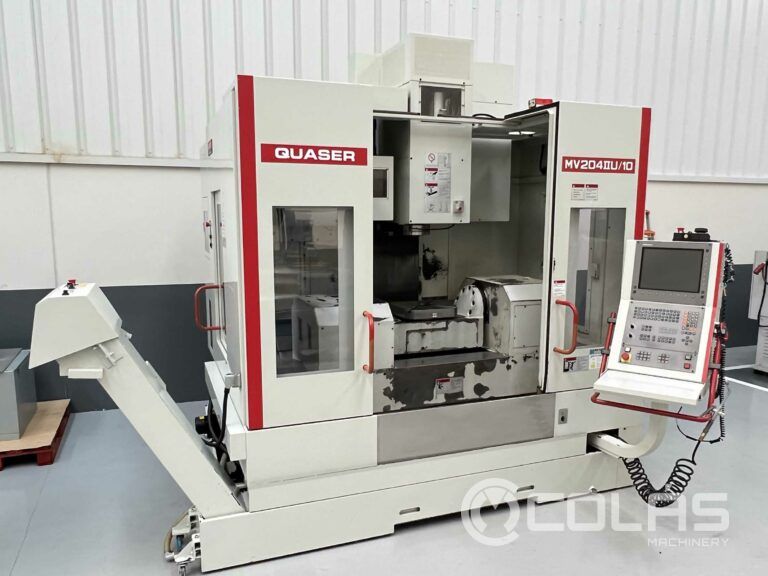

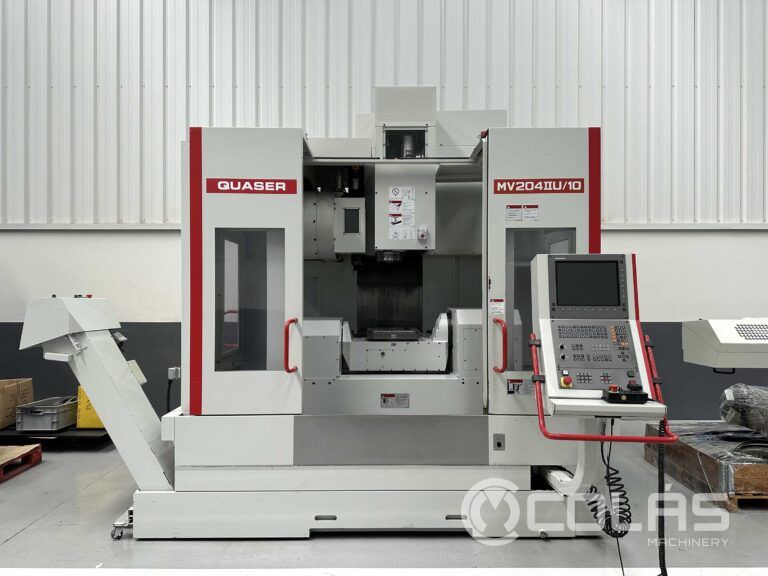

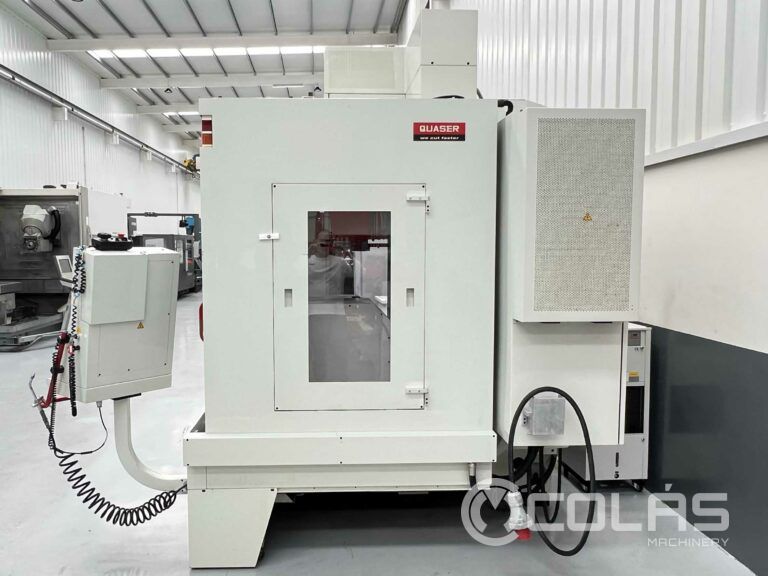

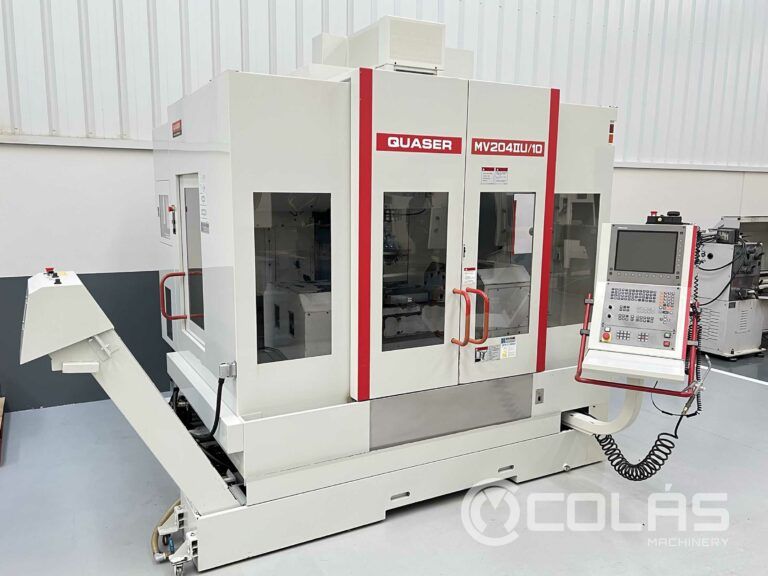

QUASER MV 204II U/10
Technical Features of this 5 axis machining center
| Manufacturer | QUASER |
| Model | MV204IIU / 10 |
| Year | 12/2002 |
| CNC | HEIDENHAIN ITNC530 |

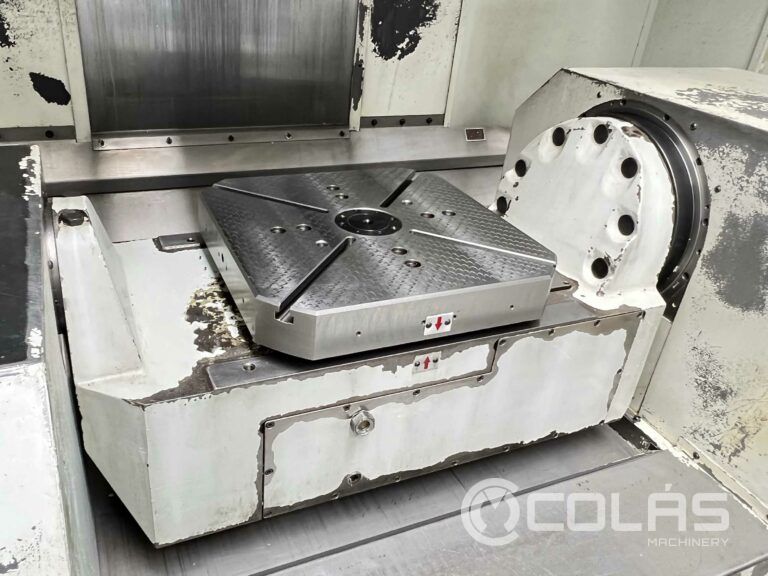

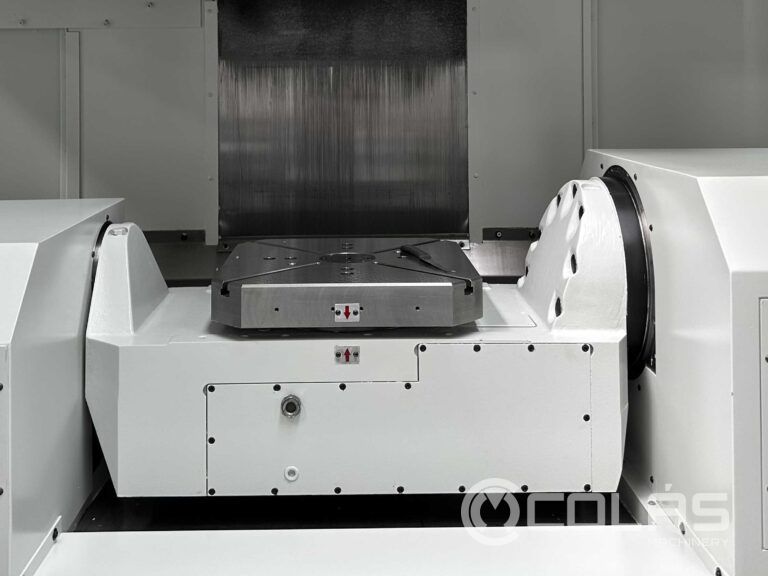

| 3 Working Tables / Pallets | |
| Table 1 Size | Ø280 mm. |
| Table 2 Size | Ø 500 mm. |
| Table 3 Size | 600×400 mm. |
| Max weight allowed on table | 265 kg |
| Min-max distance over table | 150-760 mm. |
| Axis | |
| Longitudinal Traverse (X Axis) | 700 mm |
| Cross Traverse (Y Axis | 590 mm |
| Vertical Traverse (Z Axis) | 480 mm |
| Titling spindle head range (A Axis) | ±110º |
| A Axis positioning | 0.001º |
| Table turning (C Axis) | 360º |
| C Axis positioning | 0.001º |
| Rapid Feed (X/Y/Z Axis) | 32.000 mm/min |
| Working Feed (X/Y/Z Axis) | 15.000 mm./min. |
| Spindle | |
| Spindle Speed | 10.000 r.p.m. |
| Taper | BT-40 |
| Power | 15/33 kW |
| Torque | 192/189 Nm. |
| ATC | |
| ATC Positions | 32 |
| ATC system | RANDOM |
| Max Tool length | 280 mm. |
| Max Tool weight | 7 kg |
| Other Equipment | |
| Chip Conveyor | INCLUDED |
| Internal Coolant 20 Bar | INCLUDED |
| Coolnat tank capacity 280 l. | |
| Electrical cabinet coolant | INCLUDED |
| Flushing Gun | INCLUDED |
| Portable Handwheel HEIDENHAIN HR 310 | |
| Full guarding | INCLUDED |
| Running hours | |
| Power on | 13.975 h. |
| Spindle | 6.258 h. |
| Other | |
| Total Power | 30 KVA |
| Machine Dimensions (LxWxH) | 2.220×2.650×2.855 mm. |
| Machine Weight | 8.200 kg. |
Detailed information of this 5 axis machining center
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
