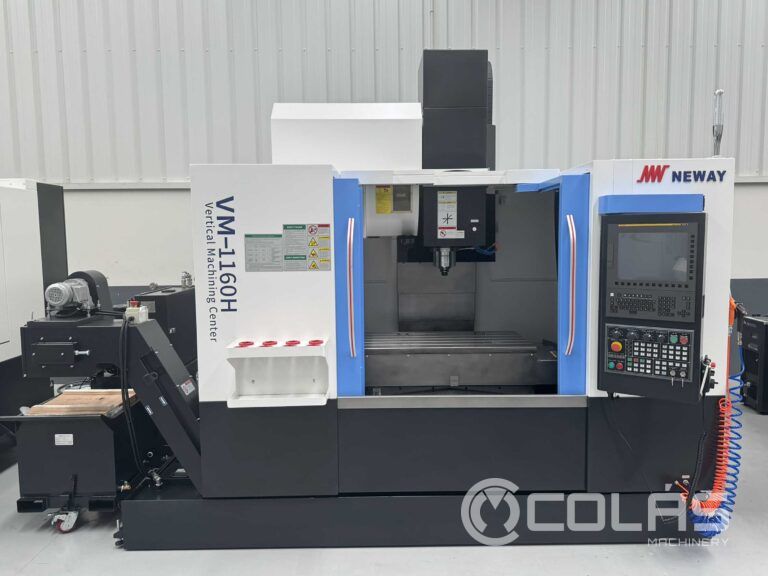

NEWAY VM 1160-H 2 units new machine
Technical Features of this Second Hand VMC
| Manufacturer | NEWAY |
| Model | VM 1160 H |
| CNC | FANUC 0i MF PLUS 15” TOUCH SCREEN |
| Table | |
| Table surface | 1.100 x 600 mm |
| Max weight allowed on table | 750 kg |
| T slots | 5 *18 mm * 100 |
| Capacities | |
| Longitudinal Travel (X- Axis) | 1.000 mm |
| Transversal Travel (Y-Axis) | 600 mm |
| Vertical Travel (Z- Axis) | 560 mm |
| Max drilling dia | Ø40mm. |
| Max tapping dia | M20 mm |
| Milling capacity | 200 cm3/min |
| Feeds | |
| Rapid feed (X, Y Axis) | 36.000 mm/min |
| Rapid feed (Z Axis) | 30.000 mm/min |
| Cutting feedrate (X, Y, Z) | 1-10.000 mm/min |
| Positioning/ Repetitivity accuracy 3 axis | 0.008/0.005 mm. |
| Main spindle | |
| Taper | BT40 |
| Spindle Speeds | 12.000 rpm |
| Spindle head | 11/18.5 kW |
| Spindle torque | 44.8/59.6 Nm |
| Distance from spindle nose to table | 150-710 mm. |
| Distance from spindle center to z axis | 660 mm. |
| Automatic Tool Changer | |
| Positions in magazine | 24 |
| Max tool diameter | 80 mm |
| Max tool length | 300 mm |
| Max tool weight | 8 kg |
| Tool change time | 1.8 s |
| Equipment | |
| Rigid Tapping | INCLUDED |
| Portable handwheel | INCLUDED |
| Longitudinal chip conveyor | INCLUDED |
| Internal coolant 20 Bar | INCLUDED |
| Coolant tank capacity | 400 l |
| Integral fairing | INCLUDED |
| Air gun and water gun | INCLUDED |
| Air conditioner of electrical cabinet | INCLUDED |
| Auto oil lubrication system | INCLUDED |
| Others | |
| Total power | 35 kVA |
| Machine Weight | 7.200 kg |
| Machine dimenssions | 4.200×2.690×3.120 mm |
Detailed information of this Second Hand VMC
2 new NEWAY VM 1160-H vertical machining centers for sale. They are in our warehouse in Zaragoza where they can be seen in operation whenever you are interested, always with an appointment to be able to serve you properly.
Do you want to receive more information about these new NEWAY VM 1160-H vertical machine centers?
Then don’t think twice and contact us. You can do so by calling +34 976500624, writing to sales@maquinariacolas.com or filling out the contact form. We will be happy to provide you with all the information you need and a no-obligation quote.
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
