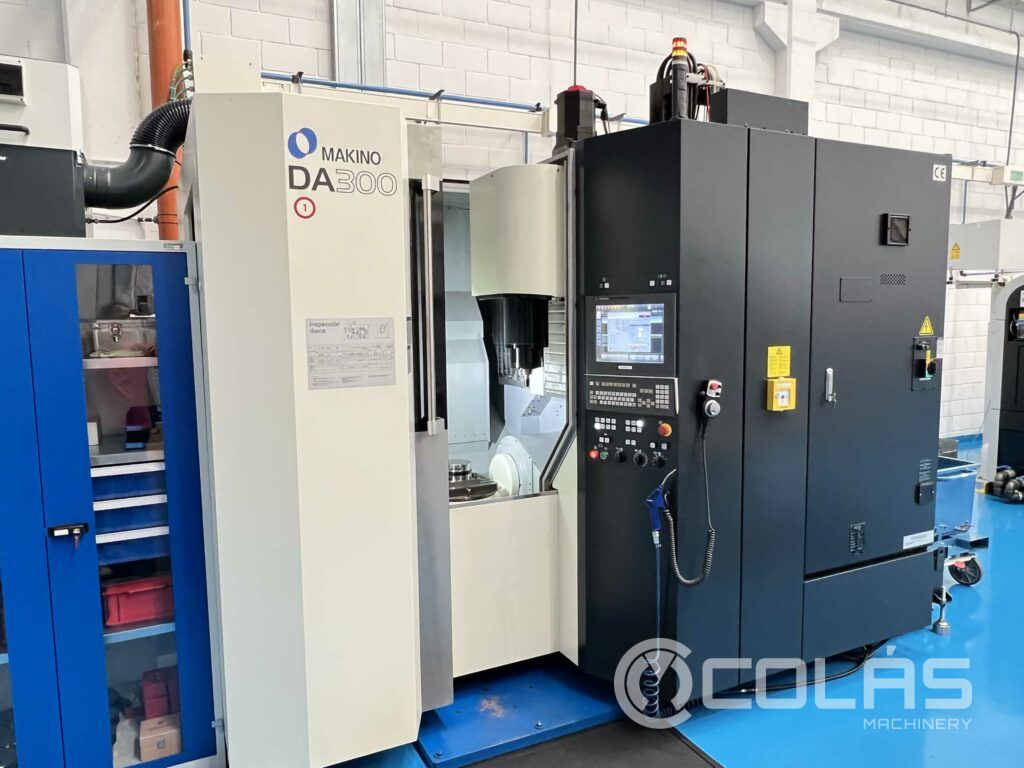

MAKINO DA 300
Other available 5 Axis Machining Centers
MAZAK VARIAXIS J600-5X
Second-hand Mazak 5-axis machining center Travels (X/Y/Z): 850/550/510 mm. Table tilting range (B axis): :210º (-120º +90º) 0.0001º Table rotation: 360º 0.0001º ATC 30 positions Chip
DMG DMU 65 monoBLOCK®
Year 2012. HEIDENHAIN TNC 530 3D Table surface: 800 x 650 mm. Tilting rotary table Ø650 mm 0.001º Travels (X/Y/Z): 735/650/560 mm. Spindle speed 24,000 rpm ATC 60 tools Internal
IBARMIA ZVH42 / L3000
New in 2008 with HEIDENHAIN i TNC 530 Table dimension: 3,800 x 850 mm. Travels (X/Y/Z) :3,000 / 800 / 800 mm Integrated 5th axis rotary table Ø 800 mm. B axis tilting head range:
DMG MORI DMU 75 monoBLOCK®
New in 2017. 3D CNC HEIDENHAIN TNC 640 Table surface: 800 x 650 mm. Tilting rotary table Ø650 mm 0.001º Travels (X/Y/Z): 750/650/560 mm. Spindle speed 20,000 rpm ATC 60 tools Internal
DMG DMU-50 eVo linear
New in 2008 with HEIDENHAIN i-TNC 530 Rotary table 500×380 mm 0.001º ( ±360º) Travels (X/Y/Z) :500/450/400 mm Titling head :0º- 108º ATC 30 tools Internal coolant 40 bar with paper
DMG DMU-160P
DMG machine center for 5-axis milling. New in 2002 with HEIDENHAIN iTNC-530 CNC Table: 1.500 x 1.250 mm. 0.001º (Continuous) Travel (X/Y/Z): 1,600/1,250/1,000 mm. Automatic head horizontal
MAZAK VTC 800/30SR
Used Mazak 5-axis center new in 2014 MAZATROL MATRIX NX2 CNC Table Surface:3,500 x 820 mm Integrated rotary table (C axis) Travels (X/Y/Z): :3,000/800/720 mm. Tilting head oscillation range
QUASER MV 204II U/10
Used Quaser 5 axis Machining center New in 2002. CNC HEIDENHAIN ITNC530 3 pallets Turning table (C Axis): 0.001º Travels (X/Y/Z): 700/590/480 mm. Titling spindle head range (A Axis):
Technical Features of this 5 axis machining center
| Table | |
| Table surface | 340 x 300 mm |
| Max weight allowed on table | 250 kg |
| T slots | 12H8 x 4 |
| Travels | |
| Longitudinal Travel X Axis | 450 mm. |
| Cross Travel Y Axis | 620 mm |
| Vertical Travel Z Axis | 500 mm. |
| Range of table A Axis | 150º ( +30º-120º) |
| Turning table C Axis | 360º continuo |
| Feeds | |
| Max. Working Feed (X/Y/Z) | 60.000 mm/min |
| Rapid feed (X/Y/Z) | 60.000 mm/min |
| Main spindle | |
| Taper | HSK-A63 |
| Spindle speed range | 50 -20000 rpm |
| Main spindle power | 22/11 kW |
| Torque | 95/28 Nm |
| Automatic tool changer | |
| Magazine capacity | 60 |
| Max tool weight | 8 kg |
| Max. tool diameter without limitations | Ø70 mm. |
| Max. tool length | 300 mm. |
| Rigid Tapping | INCLUDED |
| Internal coolant 15 MPa and air | INCLUDED |
| Chip Conveyor with filtering system | INCLUDED |
| Laser Tool Measuring BLUM | INCLUDED |
| Touch Piece Measuring Renishaw | INCLUDED |
| Additional Memory in CNC | INCLUDED |
| Portable Handwheel | INCLUDED |
| Intelligent software “Collision safeguard” | INCLUDED |
| Others | |
| Machine height | 2.885 mm. |
| Required space | ca 4.270 x 2.600 mm. |
