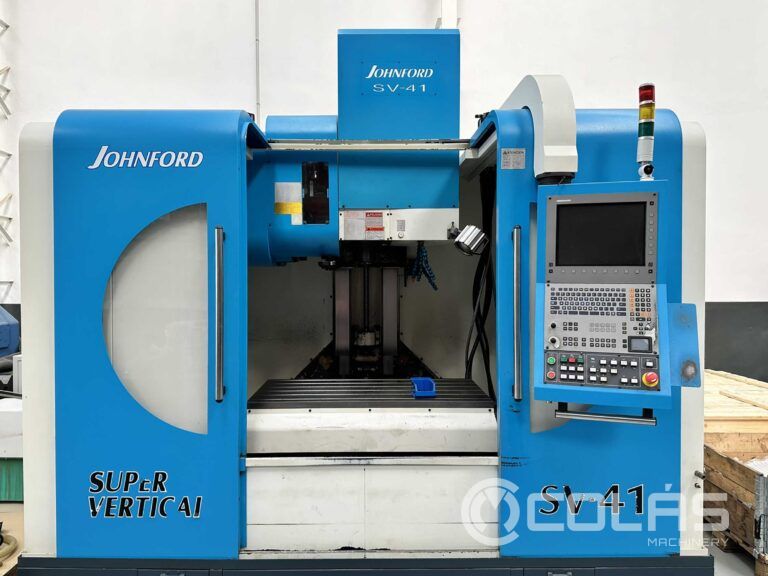

Johnford SV41
Technical Features of this Second Hand VMC
| Manufacturer / Model | JOHNFORD |
| Model | SV-41 + DIVISOR 4º/5º EJE |
| Year | 2007 |
| CNC | HEIDENHAIN iTNC 530 |
| Table dimension | 1.200 x 600 mm |
| Max weight allowed on table | 1.200 kg |
| Travels (X/Y/Z) | 1.050 / 610 / 610 mm |
| Distance spindle nose to table | 100-710 mm. |
| Distance spindle center to column | 640 mm. |
| Rapid Feed(X/Y) | 30.000 mm./min. |
| Rapid Feed(X/Y/Z) | 20.000 mm./min. |
| Cutting feed | 12.000 mm/min. |
| Taper | BT-40 |
| Spindle speed | 60-10.000 rpm |
| Spindle power | 7,5 / 11 kW |
| Automatic tool changer (ATC) | INCLUDED |
| ATC type | Bidireccional RANDOM |
| ATC Positions | 20 |
| Max tool diameter | 100 mm |
| Max tool length | 320 mm |
| Max tool weight | 10 kg |
| Equipment | |
| Internal coolant 20 Bar | INCLUDED |
| 2 longitudinal chip conveyor | INCLUDED |
| Chip Conveyor | INCLUDED |
| Portable Handwheel | HEIDENHAIN HR-410 |
| Complete installation 4th axis | INCLUDED |
| Rotary table Golden Sun CNCT 321 (4th/5th axis) | INCLUDED |
| Rotary table diameter | 200 mm. |
| Rotary table tailstock | INCLUDED |
| ZF box | INCLUDED |
| Electrical cabinet air conditioning | INCLUDED |
| Others | |
| Machine Dimensions | 2.990 x 3.420 x 2.888 mm. |
| Machine Aprox. Weight | 7.000 kg. |
Detailed information of this Second Hand VMC

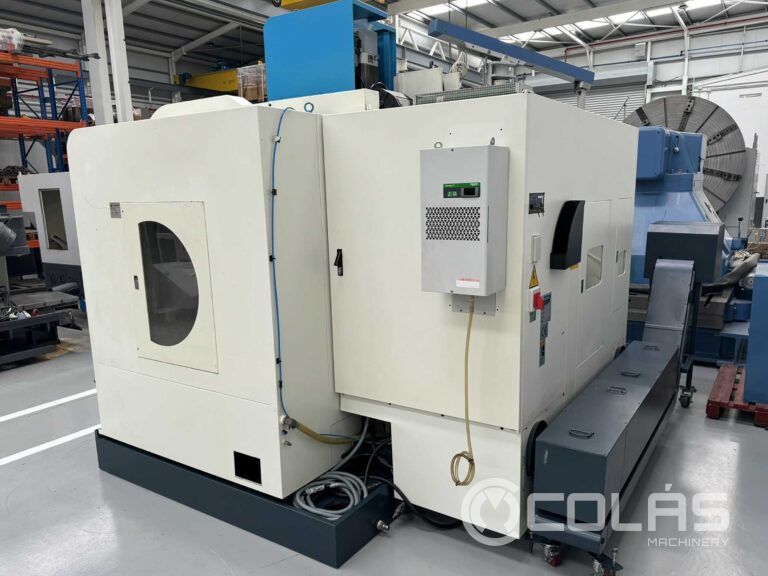

Used Johnford SV41 VMC with rotary table (4th and 5th axis) for sale. It is at our used machine tool exhibition in 50720 Zaragoza Spain where it can be seen in operation. Ready for inmediate delivery.
It is a 3+2 axis machining center new in 2007 with HEIDENHAIN iTNC 530 CNC. It is highly equipped with, among others
20-tool ATC
Internal coolant
2 longitudinal chip conveyor and one cross chip conveyor
Heidenhain HR-410 portable handwheel.

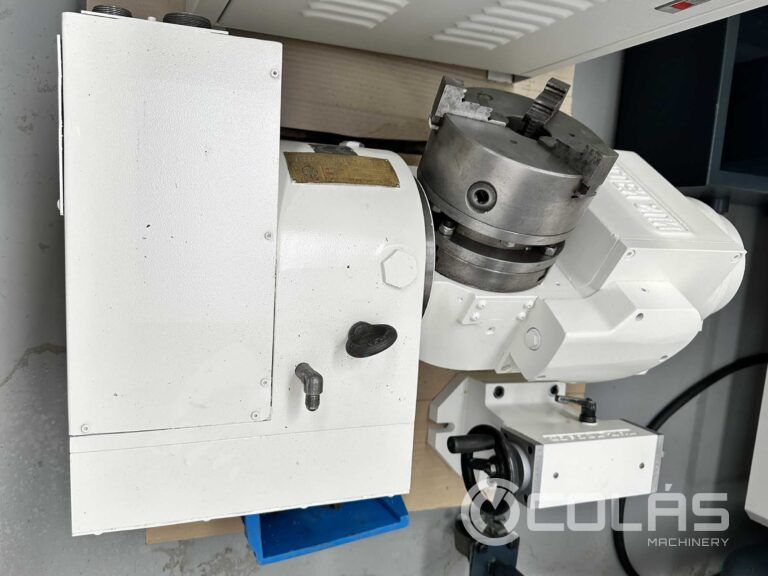

Golden Sun CNCT 321 rotary (4th and 5th axis) Ø 200 mm and tailstock
Are you interested in this second hand Johnford vertical machining center ?
Then don’t think twice and contact us. Whether you just want to know the price of this machining center or if you prefer more information or come see the machine in operation, we will be happy to assist you. Call +34976500624, write to sales@maquinariacolas.com or fill out the quote request form.
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
