IBARMIA ZVH42 / L3000
Other available 5 Axis Machining Centers
QUASER MV 204II U/10
Used Quaser 5 axis Machining center New in 2002. CNC HEIDENHAIN ITNC530 3 pallets Turning table (C Axis): 0.001º Travels (X/Y/Z): 700/590/480 mm. Titling spindle head range (A Axis):
MAZAK VARIAXIS J600-5X
Second-hand Mazak 5-axis machining center Travels (X/Y/Z): 850/550/510 mm. Table tilting range (B axis): :210º (-120º +90º) 0.0001º Table rotation: 360º 0.0001º ATC 30 positions Chip
DMG MORI DMU 75 monoBLOCK®
New in 2017. 3D CNC HEIDENHAIN TNC 640 Table surface: 800 x 650 mm. Tilting rotary table Ø650 mm 0.001º Travels (X/Y/Z): 750/650/560 mm. Spindle speed 20,000 rpm ATC 60 tools Internal
MAZAK VTC 800/30SR
Used Mazak 5-axis center new in 2014 MAZATROL MATRIX NX2 CNC Table Surface:3,500 x 820 mm Integrated rotary table (C axis) Travels (X/Y/Z): :3,000/800/720 mm. Tilting head oscillation range
DMG DMU 125 P 5 Axis
CNC: HEIDENHAIN TNC-426.New in 2006. Table Dimension:Ø 1.250 X 1.000 mm.Travels (X/Y/Z) :1.250/880/800 mm. Table Rotation (C Axis) :0,001 º (Continuous). ATC 30 Tools. Internal Coolant . Chip
DMG DMU-160P
DMG machine center for 5-axis milling. New in 2002 with HEIDENHAIN iTNC-530 CNC Table: 1.500 x 1.250 mm. 0.001º (Continuous) Travel (X/Y/Z): 1,600/1,250/1,000 mm. Automatic head horizontal
DMG DMU-50 eVo linear
New in 2008 with HEIDENHAIN i-TNC 530 Rotary table 500×380 mm 0.001º ( ±360º) Travels (X/Y/Z) :500/450/400 mm Titling head :0º- 108º ATC 30 tools Internal coolant 40 bar with paper
DMG DMU 65 monoBLOCK®
Year 2012. HEIDENHAIN TNC 530 3D Table surface: 800 x 650 mm. Tilting rotary table Ø650 mm 0.001º Travels (X/Y/Z): 735/650/560 mm. Spindle speed 24,000 rpm ATC 60 tools Internal
Technical Features of this 5 axis machining center
| Manufacturer | IBARMIA |
| Model | ZVH 42/L3000 |
| Year | 2008 |
| CNC | HEIDENHAIN i TNC 530 |
| Table | |
| Machine dimensions | 3.800 x 850 mm. |
| Number of T Slots | 7 |
| T Slot distance | 125 mm. |
| Central slot | 18 H8 |
| Travels and feeds | |
| Travels (X/Y/Z) | 3.000 / 800 / 800 mm |
| Tilting head range B Axis | ±105º |
| C Axis travel (rotary table) | 360º |
| Max distance table-spindle nose in vertical | 800 mm |
| Main spindle | |
| Type | Kessler DS/000-11934 |
| Spindle speed | 30 – 24.000 mm/min |
| Spindle taper | HSK A-63 DIN 69893 |
| Spindle torque | 19 kW |
| Spindle torque | 60 Nm |
| ATC | |
| Type | Random |
| ATC positions | 50 |

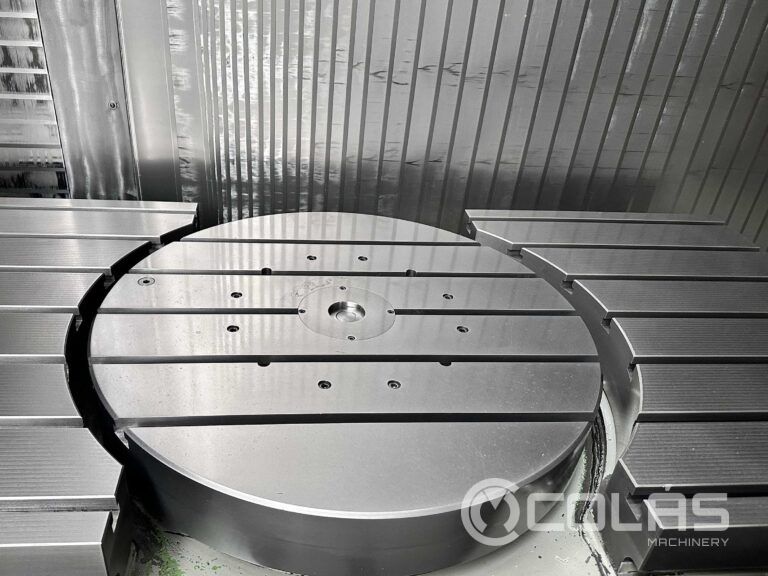

| Integrated rotary table – 5th axis | |
| Rotary table Ø | 800 mm. |
| Position | Right |
| Equipment | |
| Internal coolant with hight pressure pump | INCLUDED |
| Portable handwheel | Heidenhain HR-410 |
| 2 longitudinal chip conveyors | INCLUDED |
| Cross chip conveyors | INCLUDED |
| Kaukan coolant for electrospindle | INCLUDED |
| 1 air gun | INCLUDED |
| 1 water gun | INCLUDED |
| Laser tool presetter | INCLUDED |
| Part radio touch probe | INCLUDED |
| Others | |
| Total power | 60 kW |
| Machine weight | 22.500 kg |
Detailed information of this 5 axis machining center
Used IBARMIA ZVH42 / L3000 5-axis machining center for sale. It is in stock at our Second-hand machinery shop in Zaragoza, Spain ready for immediate deliver. Can be seen in progress, always by appointment.
Do you want to know more about this Ibarmia 5-axis machining center?
If so, do not hesitate and contact us. One of our advisors will provide you with all the information you may need and a no-obligation quote for this used Ibarmia ZVH42.
You can call us at +34976500624, write an email to sales@maquinariacolas.com or fill out the application form and let us contact you. We will be happy to answer all your questions.
If you prefer to come and see the center in operation, book an appointment by any of the methods above indicated. Upon your arrival, the machine will be running and we will have everything necessary prepared to serve you as you deserve.
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
