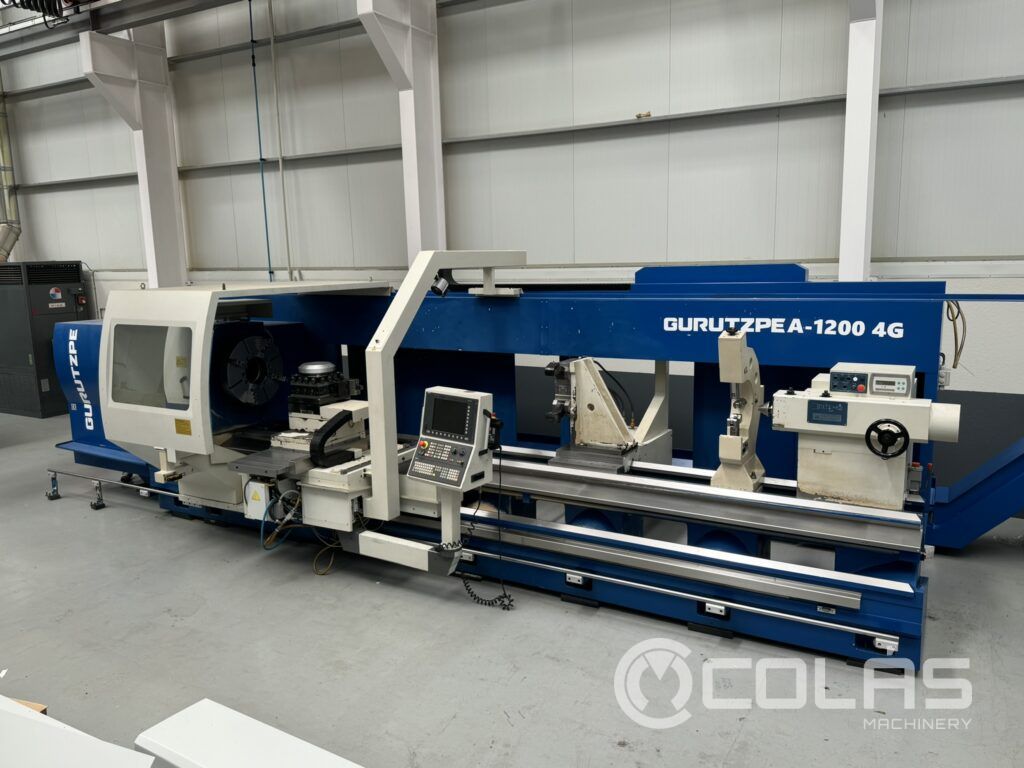

GURUTZPE 4G A-1200 x 5000
Other available CNC Lathes
Gurutzpe A1600 CNC 2G x 4000
Fabricado en 2008 con FAGOR 8055 TC Distancia entre puntos :4.000 mm. Eje C y herramientas motorizadas. Eje Y Tipo torreta Sauter 4 POS Contrapunto con movimiento longitudinal por CNC Muy
DOOSAN PUMA-700
Used Doosan CNC lathe ready for immediate delivery Year 2008. CNC Fanuc 21i TB Max swing over bed /carriage: 1,030/800 mm. Turret 12 positions 3 jaw-hydraulic chuck Ø 600 mm Tool
Mori Seiki NLX 2500SY/700
Mori Seiki turning center new in 2011 C axis in spindle and sub spindle. Y Axis Maximum swing over bed: 590 mm. Driven Tools. High precision refrigeration Bar feeder and part
Geminis GHT4 720X3000
New in 2004 with FAGOR 8055 TC/B Maximum swing over bed/cross slide: 720/470 mm. C axis and driven tools Sauter turret 8 positions SHW Autoblock 315 BH Self-Centering 3-Jaw Chuck Hydraulic
DAEWOO PUMA 2000-SY
New in 2003 with CNC FANUC 18i – T Max swing over bed/ carriage: 600/550 mm. Y Axis Travel: 100 (±50) mm. B Axis Travel: 580 mm. C axis 0.001º Driven turret positions
Technical Features of this Second Hand CNC Lathe
| Manufacturer | GURUTZPE |
| Model | A-1200 4G CNC |
| Year | 2008 |
| CNC | SIEMENS 840 D |
| Capacities and feeds | |
| Centres height | 600 mm. |
| Distance between centres | 5.000 mm. |
| Cross slide travel | 530 mm. |
| Support Guides Number | 4 |
| Max. swing over bed | 1.170 mm. |
| Max swing over cross slide | 950 mm. |
| Rapid feed X/Y axis | 10 m/min |
| Main spindle | |
| Turning Speeds | 20-1.000 rpm |
| Head Automatic Range Number | 2 |
| Main Engine Power | 51 kW |
| Quill Spindle | 260 mm. |
| Turret | |
| Turret type | SAUTER 0.5.320.032 |
| Turret positions | 4 |
| Tool size | 320×320 mm. |
| Tailstock | |
| Tailstock quill diameter | 180 mm. |
| W Axis – Driven tailstock (CNC Managed) | INCLUDED |
| Additional equipment | |
| 4 Independent jaw chuck Ø 700 mm with chuck hole 280 mm. | INCLUDED |
| Hydraulic chuck SHW Autoblock 500GH Ø 500 mm with chuck hole 260 mm. | INCLUDED |
| Steady rest SHW Autoblock SLU-5-25 | INCLUDED |
| Steady rest capacity | 45-310 mm. |
| V Axis – Longitudinal movement Z axis for | |
| SHW Autoblock SLU-5-25 steady rest | INCLUDED |
| “C type” steady rest with double bottom roller Ø 400 mm | INCLUDED |
| Support for boring bar 100 mm. | INCLUDED |
| Longitudinal chip conveyor | INCLUDED |
| Front door | INCLUDED |
| Chuck protection | INCLUDED |
| Rear protection | INCLUDED |
| Portable Handwheel | INCLUDED |
| Electrical cabinet air conditioning | INCLUDED |
| Others | |
| Total power | 69 kW |
| Machine Weight | 20.000 kg. |
| Machine dimensions | 9.775 x 3.100 mm |
Detailed information of this Second Hand CNC Lathe
Second-hand GURUTZPE A-1200 x 5000 4G CNC lathe for sale. It is in our used lathe warehouse in Zaragoza where it can be seen in operation, always by appointment so that we can serve you properly.
Do you want to know more about this Gurutzpe of 5 meters between points?
Then do not hesitate and contact us. Whether you just want to know the price of this used GURUTZPE A-1200 x 5000 4G CNC, or if you prefer more information or come see the machine in operation, we will be happy to assist you.
Call +34976500624, write to sales@maquinariacolas.com or fill out the no-obligation quote request form. We will inform you.
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
