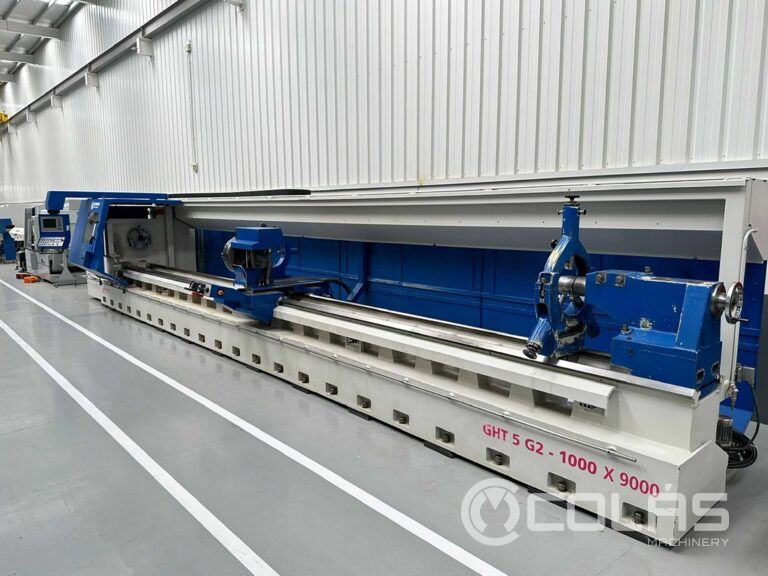

GEMINIS GHT5 G2 1000 x 9000
Other available CNC Lathes
MORI SEIKI NT 4250-DCG 1500S
Second-hand turning and milling center New in 2008 with MSX-701 III CNC Spindle 1, spindle 2 and too spindle C axis in Spindle 1 and 2 Y Axis. Hydraulic steady rest SMW Autoblock
GURUTZPE 4G A-1200 x 5000
Manufactured in 2008 with SIEMENS 840 D CNC Distance between centers: 5,000 mm Max swing on bed/carriage: 1,170/950 mm. No. of support guides: 4 SAUTER turret 0.5.320.032, 4
Mori Seiki NLX 2500SY/700
Mori Seiki turning center new in 2011 C axis in spindle and sub spindle. Y Axis Maximum swing over bed: 590 mm. Driven Tools. High precision refrigeration Bar feeder and part
GEMINIS GHT5-G2 1000×4000
Used Geminis lathe with 4 meters between centers New in 2007 with CNC:FAGOR 8055 TC/C SAUTER turret 300×300 with 4 positions C axis and driven tools Equipped with tools and
DAEWOO PUMA 2000-SY
New in 2003 with CNC FANUC 18i – T Max swing over bed/ carriage: 600/550 mm. Y Axis Travel: 100 (±50) mm. B Axis Travel: 580 mm. C axis 0.001º Driven turret positions
Technical Features of this Second Hand CNC Lathe
| Manufacturer | GEMINIS |
| Model | GHT-5 G2 1000 x 9000 |
| Year | 2.007 |
| CNC | HEIDENHAIN 4110 MANUAL PLUS |
| Capacities and feeds | |
| Max. swing over Bed Ø | 1.000 mm. |
| Max. swing Ø | 1.000 mm. |
| Max swing over cross slide Ø | 680 mm. |
| Center height | 500 mm. |
| Distance between centres | 9.000 mm. |
| Rapid feed (X/Z) | 8 m/min |
| Main Spindle | |
| Turning speeds | 0-1400 rpm |
| Quill travel | 102 mm. |
| Spindle nose | DIN-55026 -B11 |
| Spindle automatic ranges | 4 |
| Main spindle power | 37 kW |

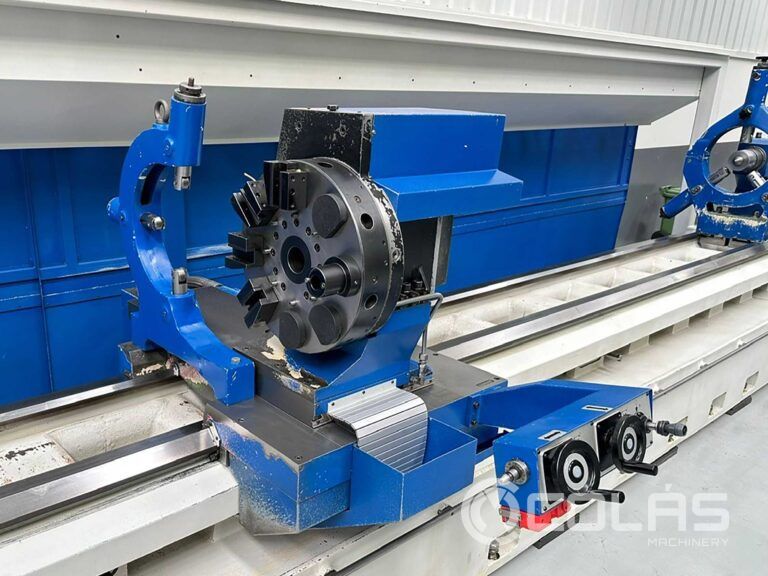

| Turret | |
| Turret positions | 8 |
| Turret type | VDI 50 (Ø 470 mm) |
| Driven tools power | 5.5 kW |
| Tailstock | |
| Tailstock quill travel | 300 mm |
| Ø tailstock quill | 140 mm |
| Max weight between centres | |
| Without steady rest | 4.800 kg |
| With 1 steady rest | 5.500 kg |
| With 2 steady rests | 6.200 kg |
| Extra Equipment | |
| C Axis and driven tools | INCLUDED |
| 1 Axial driven toolholder | INCLUDED |
| 2 radial driven toolholders | INCLUDED |
| 25 tool holders (VDI 50) | INCLUDED |
| 10 set of Jaws for Universal Chuck 3 Jaws | INCLUDED |
| Universal 3 jaw chuck Ø400 mm. | INCLUDED |
| Fast jaw change system in chuck | INCLUDED |

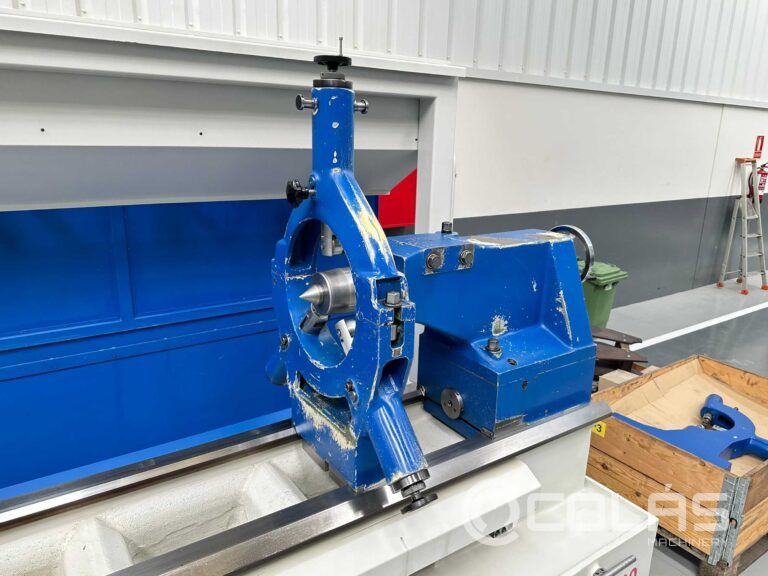

| Steady rest 3 supports Ø 400 mm | INCLUDED |
| Steady rest 3 support Ø 350 mm. | INCLUDED |
| Steady rest 3 supports Ø 200 mm. | INCLUDED |
| Motors + drivers | SIEMENS DIGITAL |
| Chuck protection | INCLUDED |
| Complete Rear Protection | INCLUDED |
| Others | |
| Total Power Required | 45 kW |
| Machine weight | 18.000 kg |
Detailed information of this Second Hand CNC Lathe

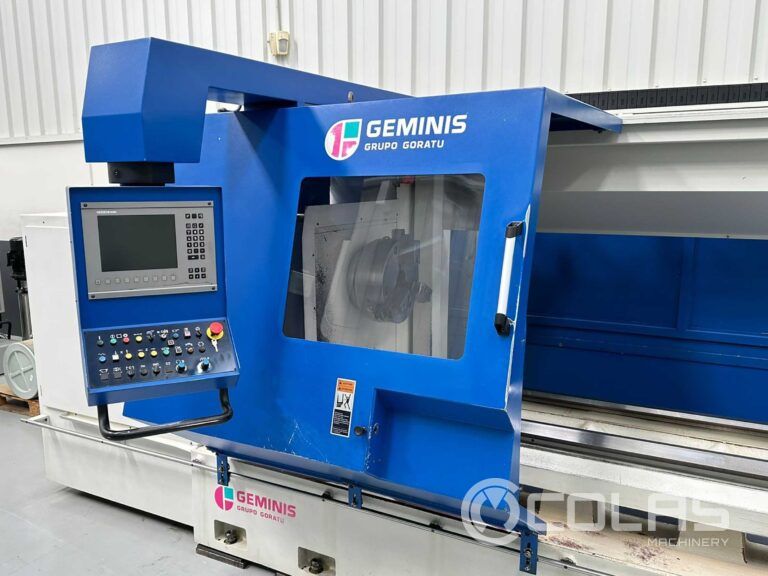

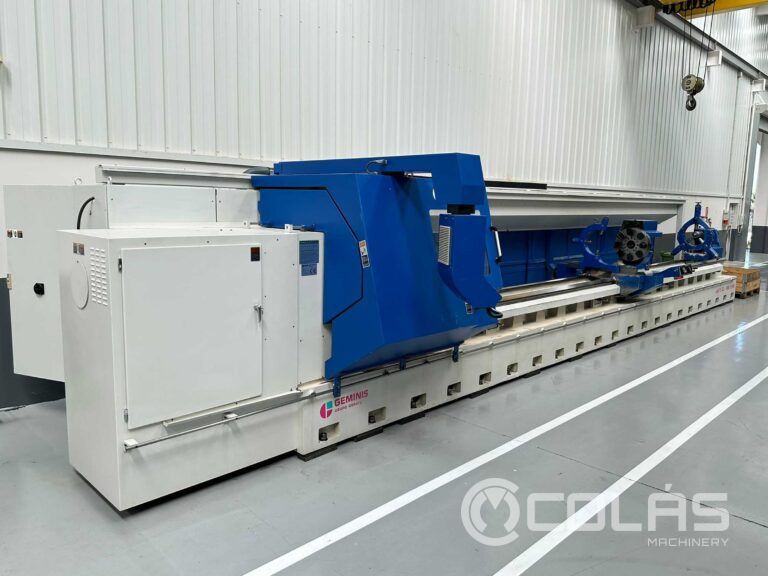

Second-hand GEMINIS GHT-5 G2 1000 x 9000 CNC lathe for sale. It is available for immediate delivery at our warehouse of used CNC lathes in 50720 Zaragoza, Spain
Do you want to buy a 9 meter Geminis lathe?
So don’t think about it and contact us. Call +34 976500624, write an email to sales@maquinariacolas.com or fill in the contact form. New or used, if you are interested in buying a Geminis CNC lathe, Maquinaria Colas is the right place. One of our experts will contact you and give you all the information you need.
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
