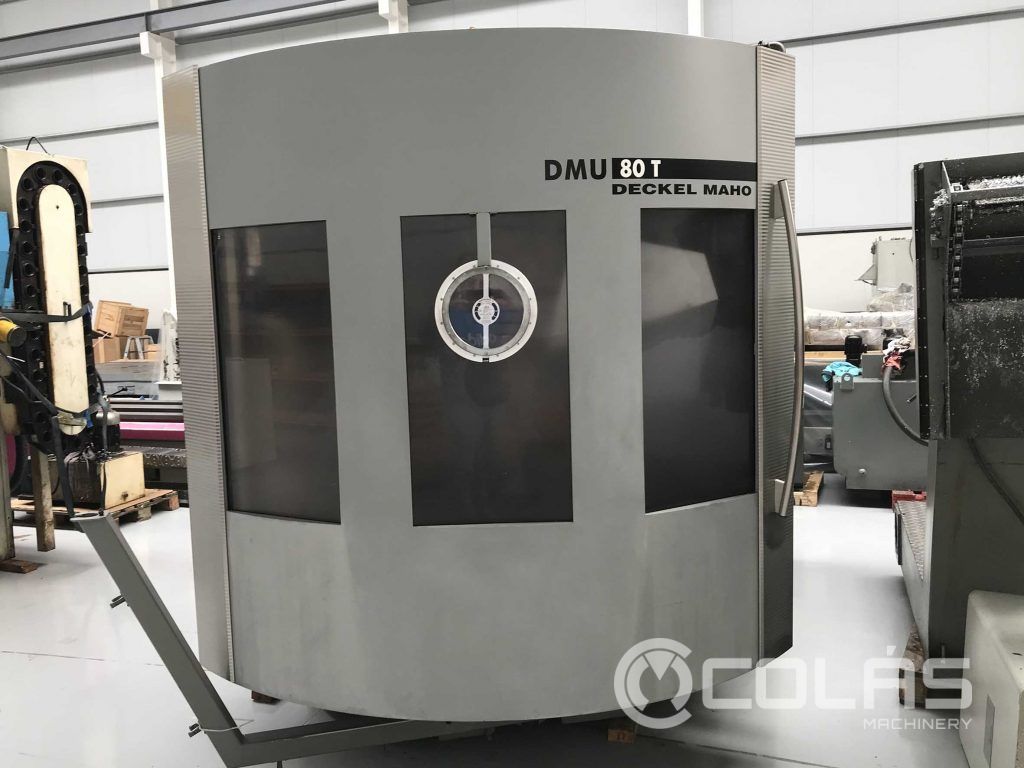

DMG DMU 80T with Heidenhain 426
Other available 5 Axis Machining Centers
MAZAK VARIAXIS J600-5X
Second-hand Mazak 5-axis machining center Travels (X/Y/Z): 850/550/510 mm. Table tilting range (B axis): :210º (-120º +90º) 0.0001º Table rotation: 360º 0.0001º ATC 30 positions Chip
DMG DMU 65 monoBLOCK®
Year 2012. HEIDENHAIN TNC 530 3D Table surface: 800 x 650 mm. Tilting rotary table Ø650 mm 0.001º Travels (X/Y/Z): 735/650/560 mm. Spindle speed 24,000 rpm ATC 60 tools Internal
DMG DMU-50 eVo linear
New in 2008 with HEIDENHAIN i-TNC 530 Rotary table 500×380 mm 0.001º ( ±360º) Travels (X/Y/Z) :500/450/400 mm Titling head :0º- 108º ATC 30 tools Internal coolant 40 bar with paper
MAZAK VTC 800/30SR
Used Mazak 5-axis center new in 2014 MAZATROL MATRIX NX2 CNC Table Surface:3,500 x 820 mm Integrated rotary table (C axis) Travels (X/Y/Z): :3,000/800/720 mm. Tilting head oscillation range
DMG DMU-160P
DMG machine center for 5-axis milling. New in 2002 with HEIDENHAIN iTNC-530 CNC Table: 1.500 x 1.250 mm. 0.001º (Continuous) Travel (X/Y/Z): 1,600/1,250/1,000 mm. Automatic head horizontal
DMG MORI 50 3rd Generation
New in 2018 with HEIDENHAIN HSCI 640 Tilting rotary table 630 x 500 mm. 0.001º (±360º) Travels (X/Y/Z) :650/520/475 mm Tilting head range (B axis) :-35° to +110° ATC 30
QUASER MV 204II U/10
Used Quaser 5 axis Machining center New in 2002. CNC HEIDENHAIN ITNC530 3 pallets Turning table (C Axis): 0.001º Travels (X/Y/Z): 700/590/480 mm. Titling spindle head range (A Axis):
DMG MORI DMU 75 monoBLOCK®
New in 2017. 3D CNC HEIDENHAIN TNC 640 Table surface: 800 x 650 mm. Tilting rotary table Ø650 mm 0.001º Travels (X/Y/Z): 750/650/560 mm. Spindle speed 20,000 rpm ATC 60 tools Internal
Technical Features of this 5 axis machining center
| New in | 2001 |
| CNC | Heidenhain 426 |
| Table Dimension | 1.250 x 700 mm. |
| Travels (X/Y/Z) | 880/630/630 mm. |
| C Axis in Table | CONTINUOUS |
| B Axis Turning Head | -91º / +12º CONTINUOUS |
| Rapid Traverse | 30.000 mm/min |
| Max. Working Feed | 30.000 mm/min. |
| Taper | SK-40 DIN 69871 |
| Turning Speeds | 20-12000 rpm |
| Main Motor Power | 19 Kw. |
| ATC | INCLUDED |
| Tools at ATC | 32 |
| Max. Weight Allowed on Table | 800 Kg. |
| Internal Coolant 40 Bar | INCLUDED |
| HEIDENHAIN Optical Rules | INCLUDED |
| Chip Conveyor | INCLUDED |
| Portable Handwheel | HEIDENHAIN HR-410 |
| 3D quickSET* | INCLUDED |
| Hours | On 42.771 |
| Spindle | On 19.127 |
| Net Weight | 9.500 Kg. |
| Tools and Accessories | INCLUDED |
Detailed information of this 5 axis machining center
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
