DMG DMU-160P
Technical Features of this 5 axis machining center
| Manufacturer | DMG |
| Model | DMU 160P |
| Year | 2002 |
| CNC | HEIDENHAIN iTNC-530 |
| Table | |
| Table surface | 1.500 x 1.250 mm. |
| Max weight allowed on table | 4.000 kg. |
| Table turning range (C Axis) | 0.001 º (Continuo) |
| Travels and feeds | |
| Longitudinal travel (X Axis) | 1.600 mm. |
| Cross travel (Y Axis) | 1.250 mm |
| Vertical travel (Z Axis) | 1.000 mm. |
| Horizontal / Vertical Auto Indexing Head (A Axis) | 0,001 º (Continuo) |
| Rapid Traverse | 60.000 mm/min |
| Spindle taper | SK-40 DIN 69871 |
| Spindle speed | 20-18.000 rpm |
| Main spindle power | 28 kW |
| Equipment | |
| Automatic tool changer | INCLUDED |
| ATC positions | 60 |
| Coolant deposit capacity 200 l. | |
| HEIDENHAIN optical scales | INCLUDED |
| Chip conveyor | INCLUDED |
| Portable handwheel | HEIDENHAIN HR-410 |
| 3D-Rot | INCLUDED |
| Tool touch probe | INCLUDED |
| M-function for internal / external lubricant | INCLUDED |
| Ready for internal coolant | INCLUDED |
| Mode 4 operation | INCLUDED |
| Others | |
| Positioning precision | 0.001 mm. |
| Total power | 90.5 kVA |
| Net weight | 35.000 Kg. |

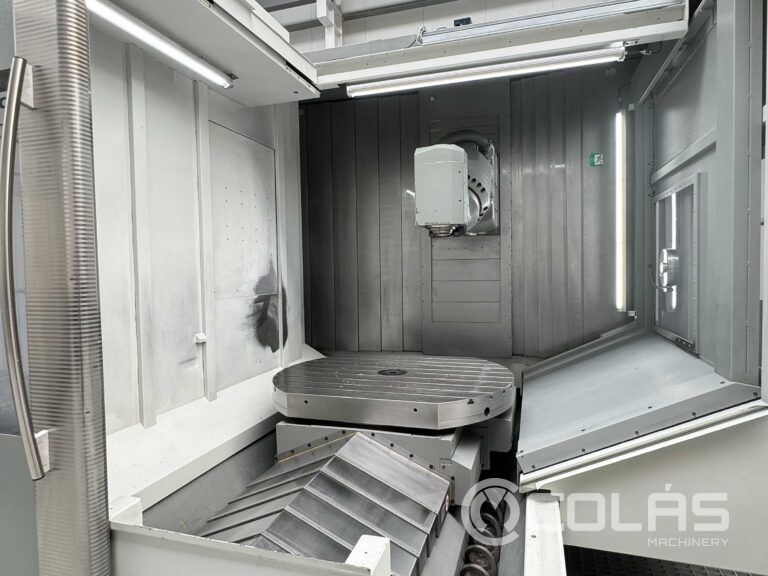

Detailed information of this 5 axis machining center
Used DMG DMU-160P 5-axis continuous machining center for sale. Available for inspection and immediate delivery at our shopfloor in Zaragoza Spain, where it can be seen in operation.
Are you interested in this second hand center for 5-axis milling?
Then don’t think twice and contact us. Whether you just want to receive an offer, or if you want to get further information or come to see the machine in operation, you have come to the right place. Call +34 976500624, write to sales@maquinariacolas.com or fill out the contact form.
We will be happy to provide you with all the information you need about this DMG DMU-160P 5-axis continuous machining center.
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
