Correa RAPID-50
Technical Features of this Brige Type Milling Machine
| Manufacturer | NICOLAS CORREA |
| Model | RAPID50 |
| New in Year | 2.005 |
| CNC | FIDIA C20 |
| Table | |
| Table Surface | 5.000 x 2.000 mm |
| Number of T slots | 11 |
| T slot width | 22 mm |
| Max weight allowed on table | 30.000 kg. |
| Travels and feeds | |
| Longitudinal traverse (X Axis) | 5.000 mm |
| Cross travel (Y Axis | 3.100 mm |
| Vertical travel (Z Axis) | 1.200 mm |
| Distance between columns | 2.800 mm. |
| Rapid feed (X Axis) | 20.000 mm/min |
| Rapid feed (Y, Z Axis) | 30.000 mm/min |
| Head | |
| Automatic head UAD | INCLUDED |
| Head UAD II positioning | 0.1º / 0. 1º |
| Main spindle speed | 6.000 rpm |
| Speed ranges | 2 |
| Main spindle power | 32 kW |
| Taper | ISO 50 |
| Tool clamping | Hidraúlico |
| Head 2 – Vertical | INCLUDED |
| Accessories | |
| Automatic tools changer | INCLUDED |
| ATC positions | 30 |
| Automatic head changer | INCLUDED |
| 2 longitudinal chip conveyors | INCLUDED |
| 1 cross chip conveyor | INCLUDED |
| Internal coolant 20 | INCLUDED |
| Portable handwheel | INCLUDED |
| Laser tool presetter | INCLUDED |
| Others | |
| Machine weight | 65.000 kg |
| Machine dimmessions | 15.100×6.200×6.250 mm. |
Detailed information of this Brige Type Milling Machine

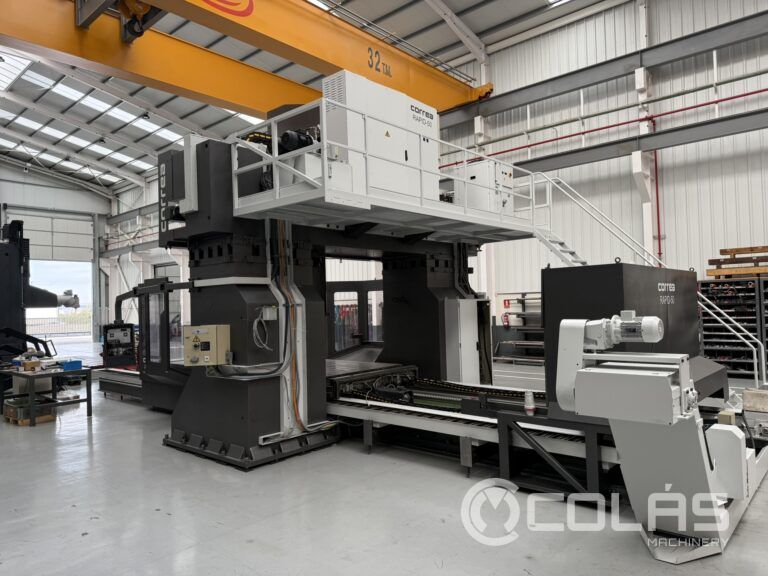

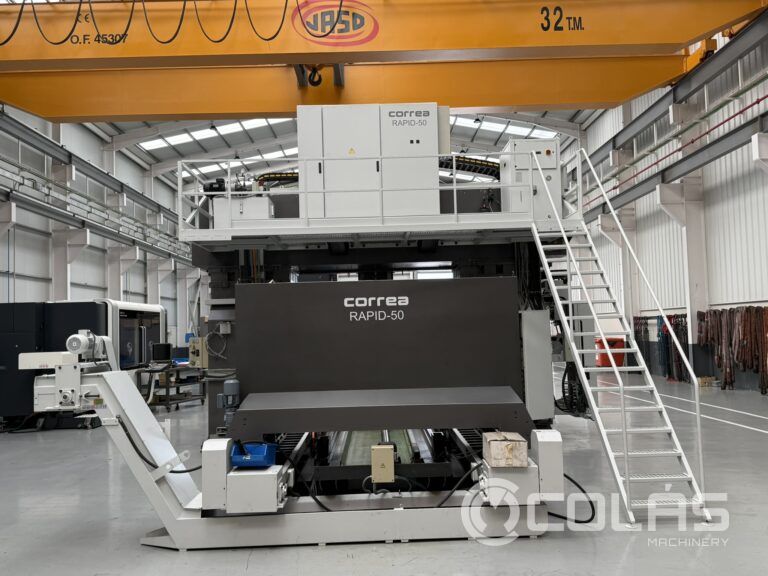

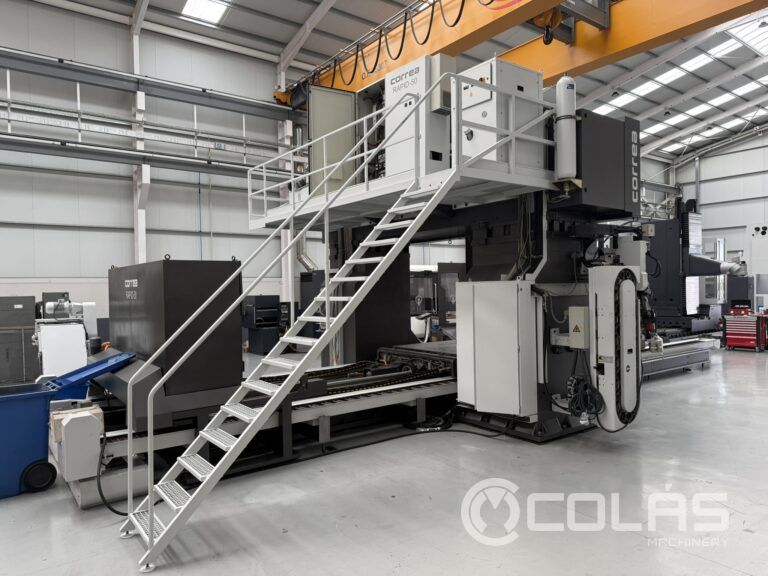

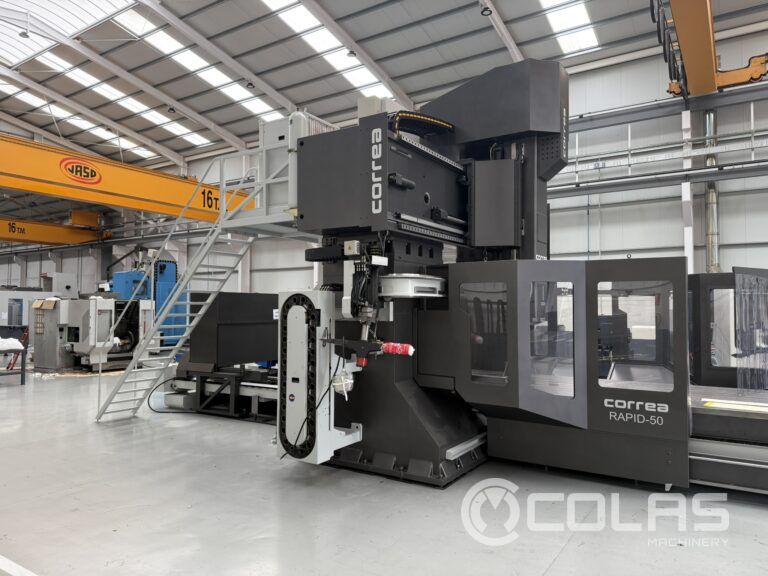

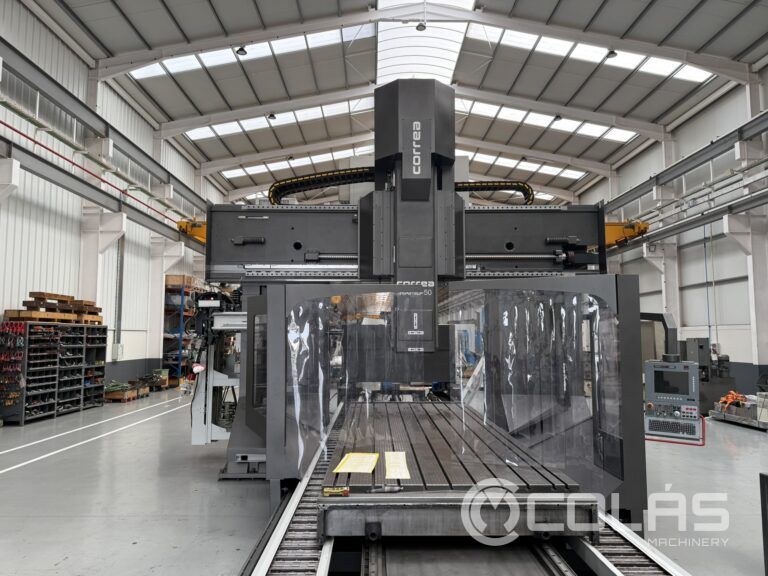

Second-hand CORREA Rapid-50 bridge type milling machine for sale. It is still at the original location where it can be seen in operation.
Do you want to know more about this Correa Rapid-50 milling machine?
Then don’t think twice and contact us. Whether you just want to know the price, or if you need to answer questions or book an appointment to see the machine in operation, we will be happy to help you.
Call +34976500624. write to sales@maquinariacolas.com or fill out the contact form.
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
