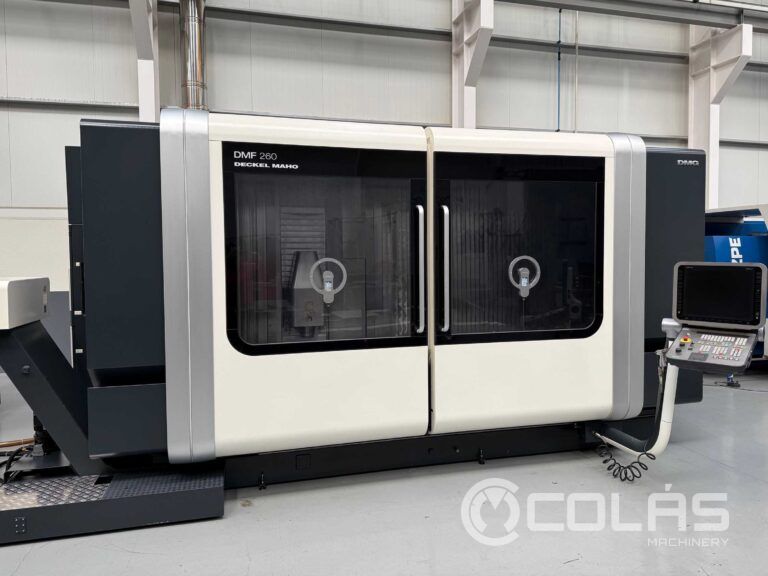

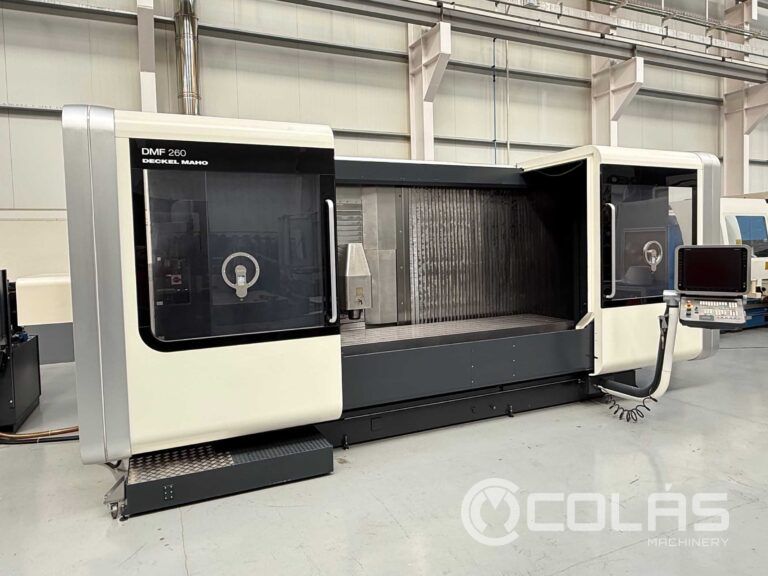

Second Hand DMG DMF-260
Technical Features of this 5 axis machining center
| Manufacturer | DMG-MORI |
| Model | DMF 260 |
| Year | 2012 |
| CNC | HEIDENHAIN iTNC 530 |
| Operación modo SmarT.NC | |
| ERGOline® Control Pantalla 19” | |
| Table | |
| Fixed table surface | 2.900 x 700 mm. |
| Integrated rotary table Ø750 mm (C Axis) in the left side of fixed table | INCLUDED |
| 2 Workspace Separator | INCLUDED |
| Max weight allowed on fixed table | 2.150 kg |
| Max weight allowed on integrated rotary table | 500 kg |
| Travels and feeds | |
| Longitudinal Traverse (X Axis) | 2.600 mm |
| 2 x 1.055 mm. | |
| Cross Traverse (Y Axis | 700 mm |
| Vertical Traverse (Z Axis) | 700 mm |

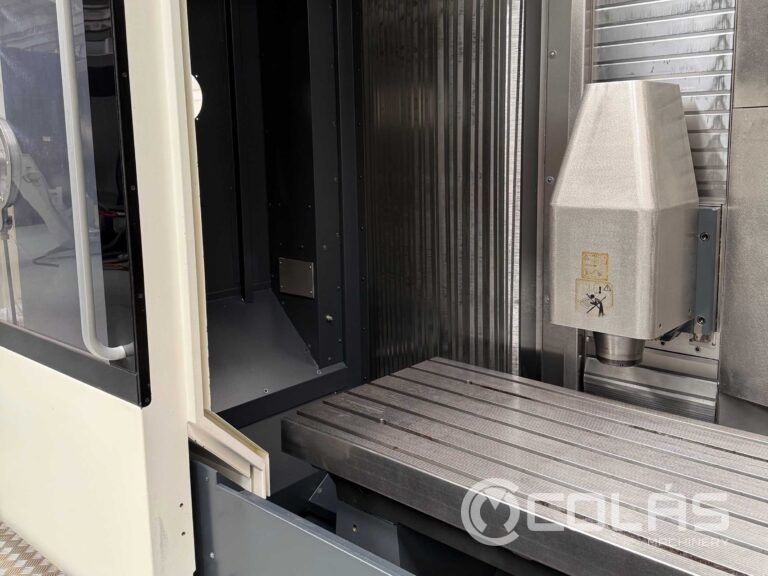

| Tilting head range (B Axis) | ± 110º |
| Rapid feed (X/Y/Z) | 40 m/min |
| Working feed (X/Y/Z) | 40 m/min |
| Main spindle | |
| Turning Speeds | 20-8.000 mm/min |
| Taper | SK 40 DIN 69872 |
| Main Motor Power | 23,5 /13,5 kW(25/100%DC) |
| Main spindle torque | 150/85 Nm (25/100%DC) |
| Automatic tool changer | |
| Magazine type | Cadena, doble garra |
| Postions in tool magazine | 30 |
| Tool clamping | DIN 69872 |
| Max tool length | 300 mm |
| Max. tool weight | 6 kg. |
| Max tool diameter | 130 mm |
| Change time chip to chip | 7.6 s |
| Equipment | |

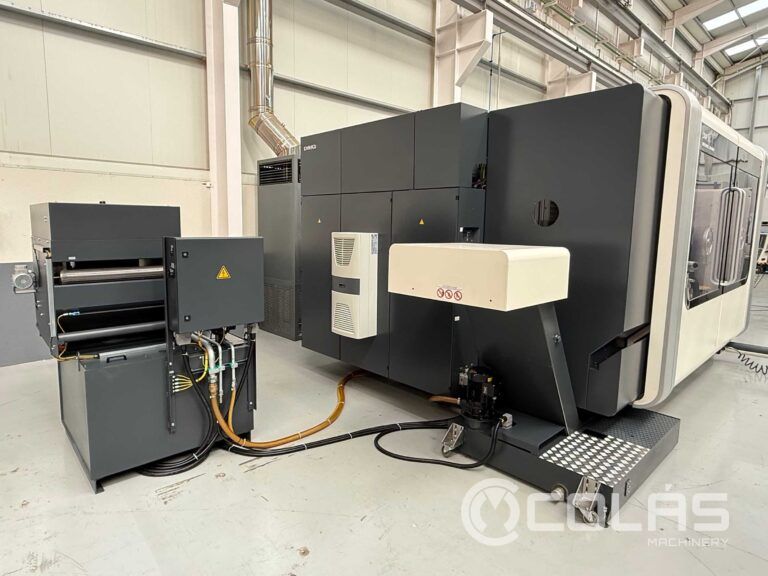

| Fully protected cabin | INCLUDED |
| Internal Coolant 40 Bar / 600 l | INCLUDED |

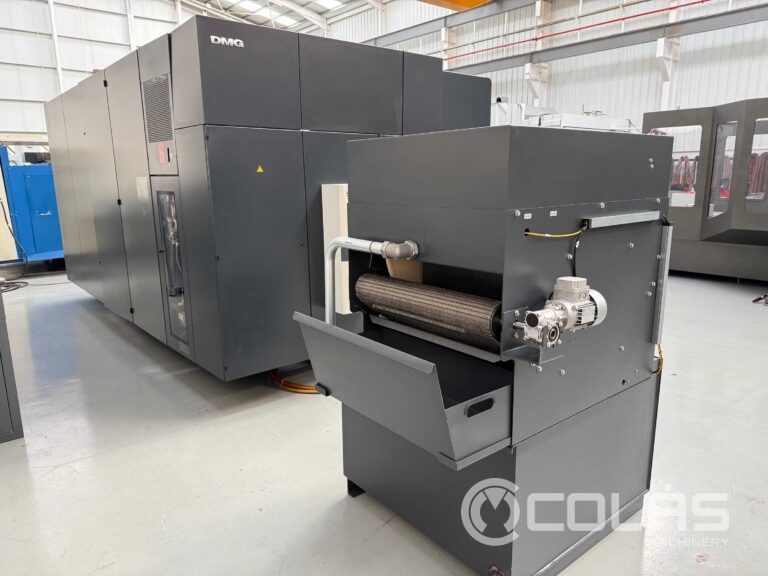

| Longitudinal chip conveyor | INCLUDED |
| 2 rotary windows | INCLUDED |
| Cleaning Gun | INCLUDED |
| Portable handwheel | INCLUDED |
| DMG 3D quickSET | INCLUDED |
| DMG Mori PP60 PowerProbe 60 optical (Renishaw OMP60) Measuring Probe | INCLUDED |
| Others | |
| Control ON hours | 24.203 h |
| Machine ON hours | 19.756 h |
| Program running hours | 10.571 h |
| Machine Weight | 15.070 kg |
Detailed information of this 5 axis machining center
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
