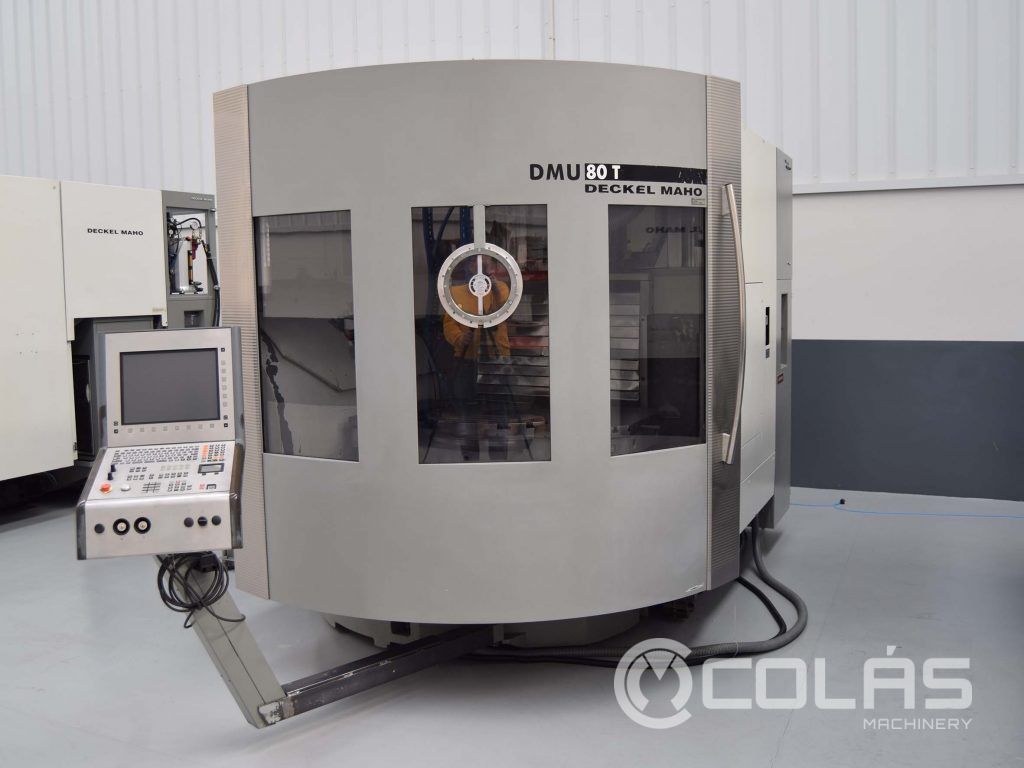

DMG DMU 80T 5-axis simultaneous machining center
Other available 5 Axis Machining Centers

QUASER MV 204II U/10
Used Quaser 5 axis Machining center New in 2002. CNC HEIDENHAIN ITNC530 3 pallets Turning table (C Axis): 0.001º Travels (X/Y/Z): 700/590/480 mm. Titling spindle head range (A Axis):

DMG DMU 125 P 5 Axis
CNC: HEIDENHAIN TNC-426.New in 2006. Table Dimension:Ø 1.250 X 1.000 mm.Travels (X/Y/Z) :1.250/880/800 mm. Table Rotation (C Axis) :0,001 º (Continuous). ATC 30 Tools. Internal Coolant . Chip

DMG DMU-160P
DMG machine center for 5-axis milling. New in 2002 with HEIDENHAIN iTNC-530 CNC Table: 1.500 x 1.250 mm. 0.001º (Continuous) Travel (X/Y/Z): 1,600/1,250/1,000 mm. Automatic head horizontal

DMG DMC 100 U duoBlock®
New in 2007 with HEIDENHAIN iTNC 530 CNC Travels (X/Y/Z): 1,000/1,000/1,000 mm Pallet changer for two 1,000 x 800 mm pallets Table rotation (C-axis): 0.001° (continuous) Automatic swivel

IBARMIA ZVH58 – L3000
New in 2001 with a Heidenhain iTNC 530 control. Table area: 3,600 x 1,050 mm. Integrated rotary table: 1,000 mm diameter. Travels (Z/Y/Z): 3,000/1,000/860 mm Effective travel x 2 stations: 2
Technical Features of this 5 axis machining center
| YOM | 2003 |
| CNC | Heidenhain TNC 530 |
| Table Dimension | 1.250 x 700 mm. |
| Travels (X/Y/Z) | 880/630/630 mm. |
| C Axis in Table | CONTINUOUS |
| B Axis Turning Head | -91º / +12º CONTINUOUS |
| Rapid Traverse | 30.000 mm/min |
| Max. Working Feed | 30.000 mm/min. |
| Taper | SK-40 DIN 69871 |
| Turning Speeds | 20-18000 rpm |
| Main Motor Power | 19/28 Kw. |
| ATC | INCLUDED |
| Tools at Tool Charger | 32 |
| Table Max. Carrying Load | 800 Kg. |
| Internal Coolant 40 Bar | INCLUDED |
| HEIDENHAIN Optical Rules | INCLUDED |
| Chip Conveyor | INCLUDED |
| Portable Handwhee | l HEIDENHAIN HR-410 |
| 3D quickSET* | INCLUDED |
| Hours On | 53.630 |
| Spindle On | 18.560 |
| Net Weight | 9.500 Kg. |
| Tools and Accessories | INCLUDED |
Detailed information of this 5 axis machining center
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
Sold. Request information about this type of machinery
